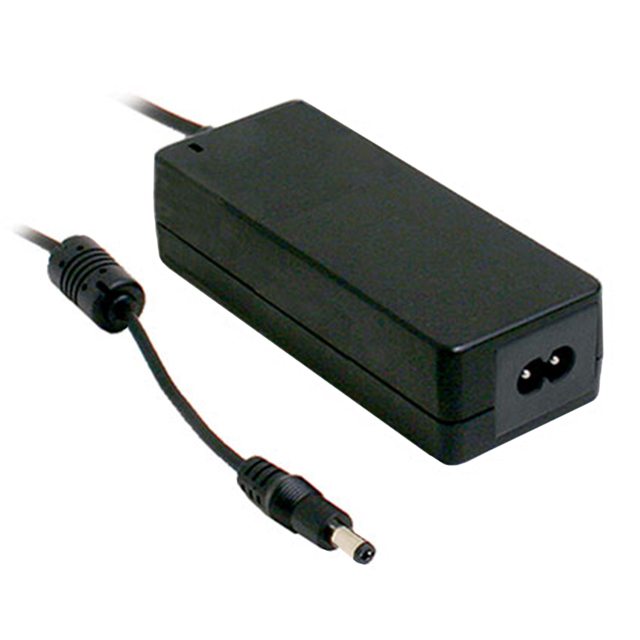

GSM60B09-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 9V 54W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSM60B09-P1J
ActiveMEAN WELL USA Inc.
AC/DC DESKTOP ADAPTER 9V 54W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSM60B09-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cRUus, TUV |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | Level V |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 54 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 31.5 mm |
| Size / Dimension [z] | 1.24 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.20 | |
| 5 | $ 22.10 | |||
| 10 | $ 21.10 | |||
| 25 | $ 20.50 | |||
Description
General part information
GSM60B09 Series
9V 54 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
