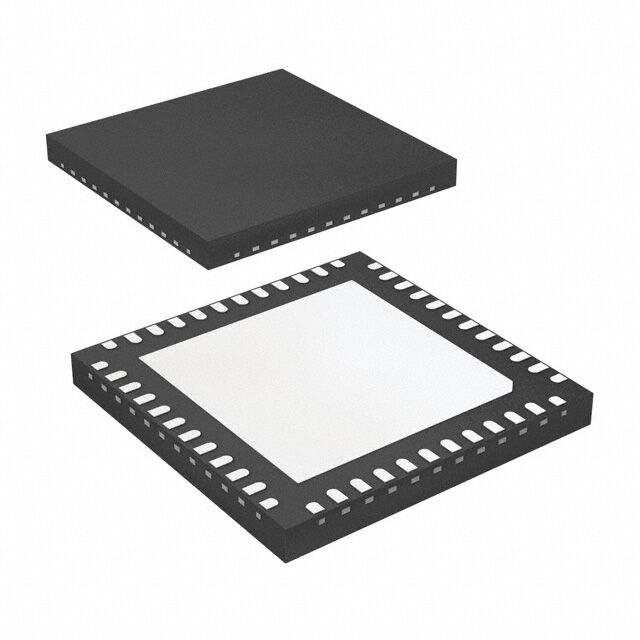

6V49205BNLGI8
ActiveRenesas Electronics Corporation
CLOCK GENERATOR IC, 25MHZ, 19 OUTPUTS, 3.135V TO 3.465V, -40°C TO 85°C, VFQFPN-48
Deep-Dive with AI
Search across all available documentation for this part.
6V49205BNLGI8
ActiveRenesas Electronics Corporation
CLOCK GENERATOR IC, 25MHZ, 19 OUTPUTS, 3.135V TO 3.465V, -40°C TO 85°C, VFQFPN-48
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6V49205BNLGI8 |
|---|---|
| Differential - Input:Output | No/Yes |
| Frequency - Max [Max] | 125 MHz |
| Input | Crystal |
| Main Purpose | Freescale P10xx, P20xx Processors |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LP-HCSL, LVCMOS |
| Package / Case | 48-VFQFN Exposed Pad |
| PLL | True |
| Ratio - Input:Output | 1:19 |
| Supplier Device Package | 48-VFQFPN (7x7) |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.02 | |
| 10 | $ 5.41 | |||
| 25 | $ 5.11 | |||
| 100 | $ 4.43 | |||
| 250 | $ 4.20 | |||
| 500 | $ 3.77 | |||
| 1000 | $ 3.18 | |||
| Digi-Reel® | 1 | $ 6.02 | ||
| 10 | $ 5.41 | |||
| 25 | $ 5.11 | |||
| 100 | $ 4.43 | |||
| 250 | $ 4.20 | |||
| 500 | $ 3.77 | |||
| 1000 | $ 3.18 | |||
| Tape & Reel (TR) | 2000 | $ 3.02 | ||
Description
General part information
6V49205 Series
6V49205BNLGI8 is a main clock for NXP P10xx and P20xx-based systems. It has a selectable System CCB clock and 2 DDRCLK speeds – 100M or 66.66M. The 6V49205B also provides LP-HCSL PCIe outputs for low power and reduced board space.
