086-2SMR+
ActiveMINI-CIRCUITS

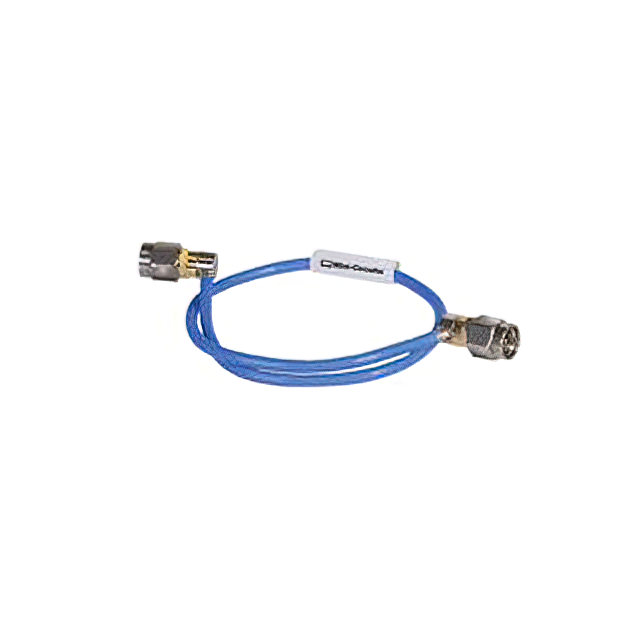

CBL ASSY SMA PLUG TO PLUG 2"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
086-2SMR+
ActiveMINI-CIRCUITS
CBL ASSY SMA PLUG TO PLUG 2"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 086-2SMR+ |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Hand Formable |
| Cable Type | 0.086 |
| Color | Blue |
| Frequency - Max [Max] | 18 GHz |
| Length | 50.8 mm |
| Length | 2 in |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 22.97 | |
| 10 | $ 22.80 | |||
| 25 | $ 22.64 | |||
| 50 | $ 22.32 | |||
Description
General part information
086-2 Series
Cable Assembly Coaxial SMA to SMA Hand Formable .086 2.000" (50.80mm)
