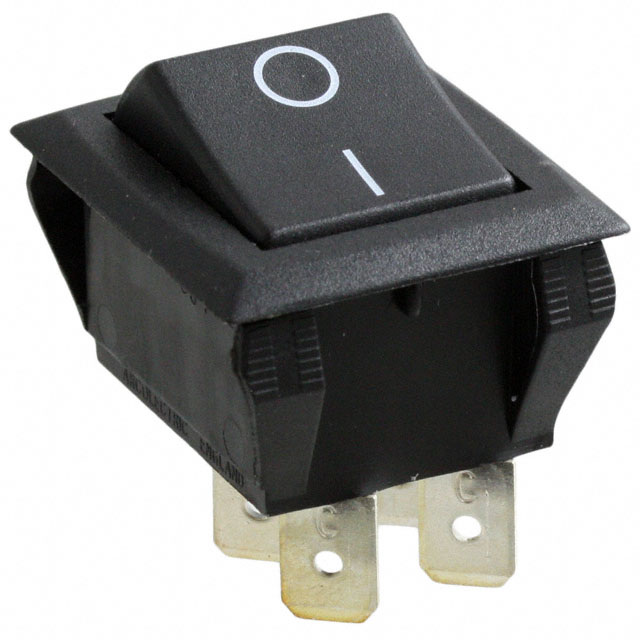

C1350ARBB-602AW
ActiveBULGIN LIMITED
SWITCH ROCKER DPST-NO 20A 250V
Deep-Dive with AI
Search across all available documentation for this part.
C1350ARBB-602AW
ActiveBULGIN LIMITED
SWITCH ROCKER DPST-NO 20A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1350ARBB-602AW |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 25.4 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.39 | |
| 10 | $ 5.76 | |||
| 25 | $ 5.47 | |||
| 50 | $ 5.24 | |||
| 100 | $ 5.07 | |||
| 250 | $ 4.81 | |||
| 500 | $ 4.43 | |||
| 1000 | $ 4.23 | |||
Description
General part information
C1350AR Series
Rocker Switch DPST-NO 20A (AC/DC) 250 V Panel Mount, Snap-In
