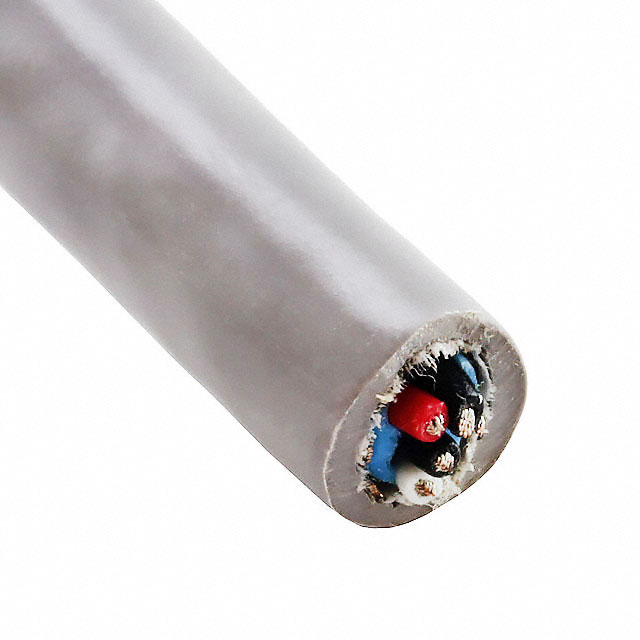

M13191 SL005

Active

ALPHA WIRE

MULTI-PAIR 4CON 24AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4CON 24AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M13191 SL005

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Shield Material	Voltage	Shield Type	Features	Number of Conductors	Jacket (Insulation) Material	Cable Type	Ratings	Jacket Color	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Length [x]	Length [x]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE M13191 SL005	Poly-Vinyl Chloride (PVC)	Aluminum	300 V	Foil	Drain Wire Rip Cord	4	Poly-Vinyl Chloride (PVC)	Multi-Pair	UL Style 2464	Slate	Copper Tinned	-20 C	80 C	24 AWG	30.5 m	100 ft	100 %	32 AWG	7	5.46 mm	0.215 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 100.0' (30.5m)
