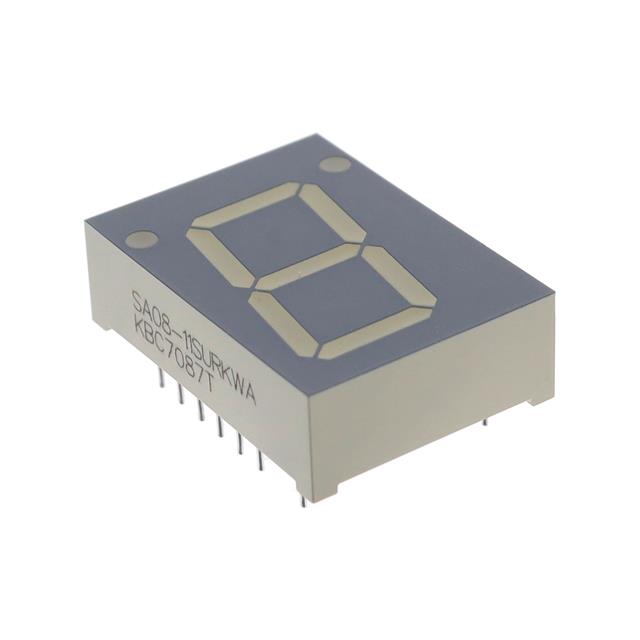

DISPLAY SEGMENTED MODULE 1DIGIT 8LED HYPER RED CA 13-PIN DIP MODULE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SA08-11SURKWA

Active

Kingbright

DISPLAY SEGMENTED MODULE 1DIGIT 8LED HYPER RED CA 13-PIN DIP MODULE TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SA08-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	7-Segment
Millicandela Rating	61 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	16-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	1.091 in
Size / Dimension [x]	27.7 mm
Size / Dimension [y]	0.787 in
Size / Dimension [y]	20 mm
Size / Dimension [z]	8.4 mm
Size / Dimension [z]	0.331 in
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	645 nm

SA08-11 Series

Part	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Common Pin	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Wavelength - Peak	Power Dissipation (Max) [Max]	Display Type	Color	Package / Case	Package / Case	Package / Case	Millicandela Rating	Package / Case
Kingbright SA08-11SURKWA	20.32 mm	0.8 in	1.95 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA	645 nm	75 mw	7-Segment	Red	0.6 in	15.24 mm	16-DIP	61 mcd
Kingbright SA08-11GWA	20.32 mm	0.8 in	2.2 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA	565 nm	62.5 mW	7-Segment	Green		0.6 in	18-DIP	13 mcd	15.24 mm
Kingbright SA08-11YWA	20.32 mm	0.8 in	2.1 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA	590 nm	75 mw	7-Segment	Yellow		0.6 in	18-DIP	7.9 mcd	15.24 mm
Kingbright SA08-11SRWA	20.32 mm	0.8 in	1.85 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA	660 nm	75 mw	7-Segment	Red		0.6 in	18-DIP	36 mcd	15.24 mm
Kingbright SA08-11CGKWA	20.32 mm	0.8 in	2.1 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA		75 mw	7-Segment	Green	0.6 in	15.24 mm	16-DIP	25 mcd
Kingbright SA08-11SYKWA	20.32 mm	0.8 in	2 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA	590 nm	75 mw	7-Segment	Yellow	0.6 in	15.24 mm	16-DIP	140 mcd
Kingbright SA08-11EWA	20.32 mm	0.8 in	2 V	1	Common Anode	8.4 mm	0.331 in	1.091 in	0.787 in	27.7 mm	20 mm	20 mA	627 nm	75 mw	7-Segment	Red		0.6 in	18-DIP	8 mcd	15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.34
		18	$ 2.06
		108	$ 1.66
		504	$ 1.45
		1008	$ 1.38
		2016	$ 1.33
		5004	$ 1.27

Description

General part information

SA08-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm)
