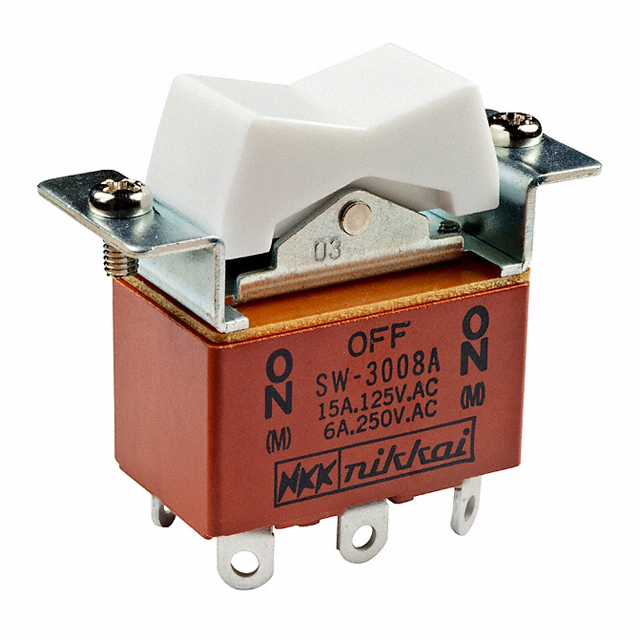

SW3008A

Active

NKK Switches

ROCKER SWITCH, (ON)-OFF-(ON), DPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, (ON)-OFF-(ON), DPDT, NON ILLUMINATED, PANEL MOUNT, WHITE, SW SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	SW3008A

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Ingress Protection	Dust Proof
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Approval Agency	Circuit	Voltage Rating - DC	Termination Style	Electrical Life	Voltage Rating - AC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Mounting Type	Mechanical Life	Switch Function	Color - Actuator/Cap	Actuator Marking	Ingress Protection	Current Rating (Amps)	Actuator Type
NKK Switches SW3008A	CSA UL	DPDT	30 V	Solder Lug	10000 Cycles	125 V	-10 °C	158 °F	Flange Panel Mount	30000 Steps	Mom-Off-Mom	White	No Marking	Dust Proof	15 A	Concave (Standard V)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 15A (AC/DC) 125 V Panel Mount, Flange
