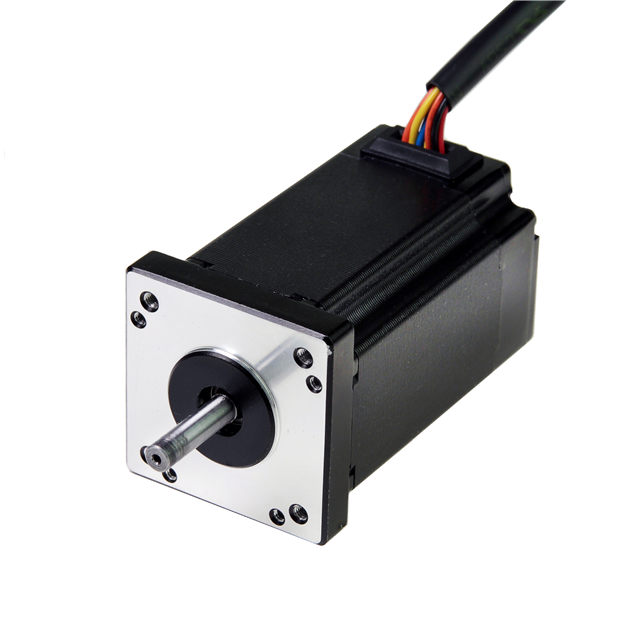

BL17E28-02-RO

Active

LIN ENGINEERING

BLDC MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

BLDC MOTOR

Technical Specifications

Parameters and characteristics for this part

Specification	BL17E28-02-RO

Approval Agency	CE
Diameter - Shaft [diameter]	0.197 in
Diameter - Shaft [diameter]	5 mm
Function	Standard
Length - Shaft and Bearing [x]	20.1 mm
Length - Shaft and Bearing [x]	0.791 in
Motor Type	Brushless (BLDC)
Mounting Hole Spacing	1.22 in
Mounting Hole Spacing	31 mm
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Power - Rated	60 W
RPM	4000 RPM
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.654 "
Size / Dimension [y]	42 mm
Torque - Max Momentary (oz-in / mNm)	288 mNm
Torque - Max Momentary (oz-in / mNm)	40.78 oz-in
Torque - Rated (oz-in / mNm)	144 mNm
Torque - Rated (oz-in / mNm)	20.39 oz-in
Type	DC Motor
Voltage - Rated [custom]	48 VDC

Part	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	RPM	Function	Mounting Hole Spacing	Mounting Hole Spacing	Motor Type	Approval Agency	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated [custom]	Power - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
LIN ENGINEERING BL17E28-02-RO	144 mNm	20.39 oz-in	42 mm	1.654 "	1.654 in	42 mm	DC Motor	288 mNm	40.78 oz-in	4000 RPM	Standard	1.22 in	31 mm	Brushless (BLDC)	CE	20.1 mm	0.791 in	48 VDC	60 W	0.197 in	5 mm	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.20

General part information

Brushless (BLDC) DC Motor Standard 4000 RPM 60W 48VDC

Technical documentation and resources

No documents available
