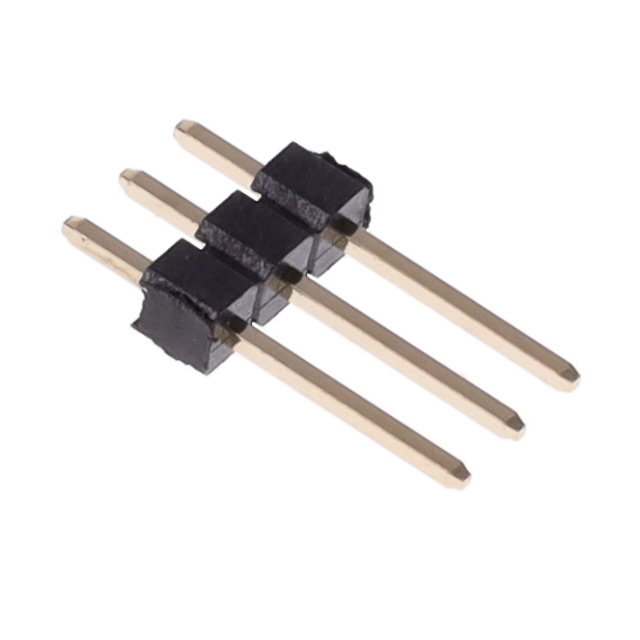

G800LR305018EU

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.54MM PITCH STR DIP,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.54MM PITCH STR DIP,

Technical Specifications

Parameters and characteristics for this part

Specification	G800LR305018EU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Contact Type	Male Pin
Current Rating (Amps)	3 A
Insulation Color	Black
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded

Part	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Current Rating (Amps)	Insulation Color	Contact Finish - Post	Insulation Material	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating
Amphenol ICC (Commercial Products) G800LR305018EU	Header	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Black	Gold	Thermoplastic	Unshrouded	-25 °C	105 ░C	2	Copper Alloy	All	Gold	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole position 0.100" (2.54mm)
