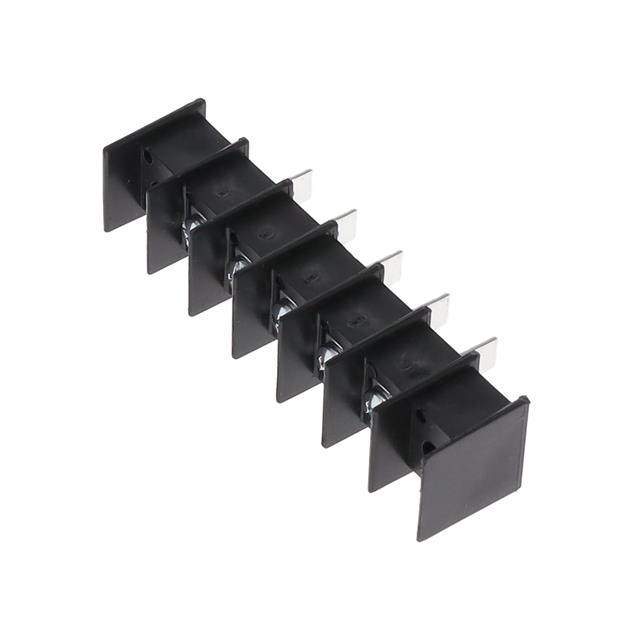

430500-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

430500-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	430500-05-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Quick Connect
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	5
Number of Rows	1
Number of Wire Entries	5
Operating Temperature	105 C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

430500 Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Features	Pitch [x]	Pitch [x]	Barrier Type	Material Flammability Rating	Current Rating (Amps)	Terminal Screw Finish	Terminal Block Type	Top Termination	Bottom Termination	Number of Circuits	Mounting Type	Number of Rows	Number of Wire Entries	Terminal Screw Material	Voltage Rating	Material - Insulation	Operating Temperature
Curtis Industries 430500-04-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	4	Chassis Panel	1	4	Steel	600 V	Polypropylene (PP)	105 C
Curtis Industries 430500-21-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	21	Chassis Panel	1	21	Steel	600 V	Polypropylene (PP)	105 C
Curtis Industries 430500-24-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	24	Chassis Panel	1		Steel	600 V	Polypropylene (PP)	105 C
Curtis Industries 430500-07-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	7	Chassis Panel	1	7	Steel	600 V	Polypropylene (PP)	105 C
Curtis Industries 430500-05-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	5	Chassis Panel	1	5	Steel	600 V	Polypropylene (PP)	105 C
Curtis Industries 430500-18-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	18	Chassis Panel	1	18	Steel	600 V	Polypropylene (PP)	105 C
Curtis Industries 430500-16-0	12 AWG	22 AWG	Flange	11.12 mm	0.438 in	2 Wall (Dual)	UL94 V-0	20 A	Zinc	Barrier Block	Screws	Quick Connect	16	Chassis Panel	1	16	Steel	600 V	Polypropylene (PP)	105 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.71
		10	$ 2.82
		25	$ 2.65
		50	$ 2.35
		100	$ 2.30
		250	$ 2.25

Description

General part information

430500 Series

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
