IPR3SAD2

Active

APEM

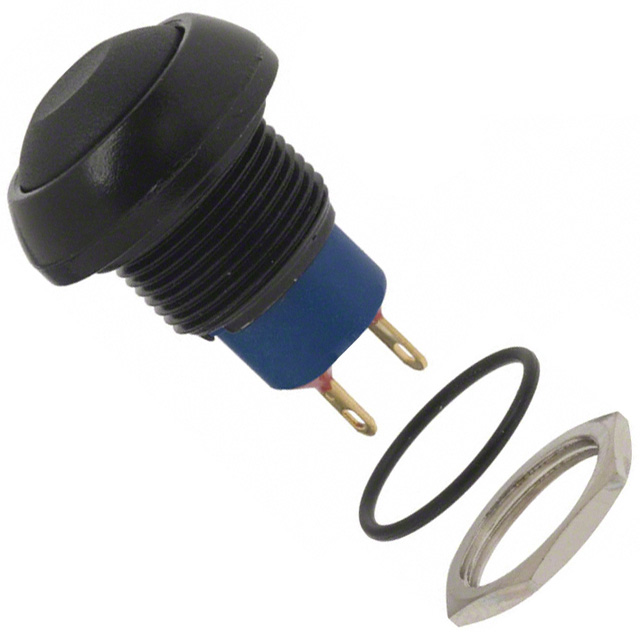

INDUSTRIAL PUSHBUTTON SWITCH, IP SERIES, 13.6 MM, SPST-NO, MOMENTARY, ROUND CURVED, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPR3SAD2

Active

APEM

INDUSTRIAL PUSHBUTTON SWITCH, IP SERIES, 13.6 MM, SPST-NO, MOMENTARY, ROUND CURVED, BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPR3SAD2

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	200 mA, 500 mA
Electrical Life	500000 Cycles
Features	Tactile Feedback
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

IPR3SA Series

Part	Voltage Rating - DC	Circuit	Type	Termination Style	Actuator Type	Ingress Protection	Features	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Mounting Type	Actuator Marking	Illumination Voltage (Nominal)	Illumination Type, Color
APEM IPR3SAD2	48 V	SPST-NO	Standard	Solder Lug	Button Round	IP67 - Dust Tight Waterproof	Tactile Feedback	13.6 mm	Off-Mom	48 V	500000 Cycles	200 mA 500 mA	125 °C	-40 °C	Black	Panel Mount Front	No Marking
APEM IPR3SAD7/1L0S	48 V	SPST-NO	Illuminated Standard	Solder Lug	Button Round	IP67 - Dust Tight Waterproof	Tactile Feedback	13.6 mm	Off-Mom	48 V	500000 Cycles	200 mA 500 mA	125 °C	-40 °C	White	Panel Mount Front	No Marking	2 VDC	LED Red
APEM IPR3SAD2L0T	48 V	SPST-NO	Illuminated Standard	Solder Lug	Button Round	IP67 - Dust Tight Waterproof	Tactile Feedback	13.6 mm	Off-Mom	48 V	500000 Cycles	200 mA 500 mA	125 °C	-40 °C	Black	Panel Mount Front	No Marking
APEM IPR3SAD3L0Y	48 V	SPST-NO	Illuminated Standard	Solder Lug	Button Round	IP67 - Dust Tight Waterproof	Tactile Feedback	13.6 mm	Off-Mom	48 V	500000 Cycles	200 mA 500 mA	125 °C	-40 °C	Green	Panel Mount Front	No Marking	2 VDC	LED Yellow
APEM IPR3SAD2130	48 V	SPST-NO	Standard	Solder Lug	Button Round	IP67 - Dust Tight Waterproof	Tactile Feedback	13.6 mm	Off-Mom	48 V	500000 Cycles	200 mA 500 mA	125 °C	-40 °C	Black	Panel Mount Front	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.56
		10	$ 22.05
		25	$ 20.79
		50	$ 19.88
		100	$ 19.01
		250	$ 17.92
		500	$ 17.13

Description

General part information

IPR3SA Series

The IPR3SAD2 is a single-pole single-throw (SPST) non-illuminated momentary Pushbutton Switch for harsh environments, with solder lug terminal, black round curved actuator and NO electrical functions. IP series switch has gold plated silver contact, polyamide 6/6 actuator, polycarbonate lens and epoxy terminal seal. A sealing boot is available to protect the switches against frost and sand.
