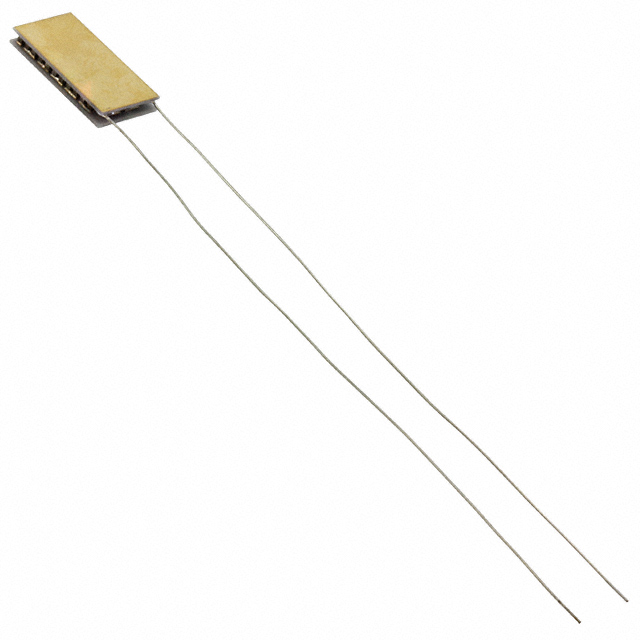

430495-504
Laird Thermal Systems, Inc.
HOT19,35,F1N,0612,GG,W2.25
Deep-Dive with AI
Search across all available documentation for this part.
430495-504
Laird Thermal Systems, Inc.
HOT19,35,F1N,0612,GG,W2.25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430495-504 |
|---|---|
| Current - Max [Max] | 1.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 1.88 mm |
| Number of Stages | 1 |
| Operating Temperature | 175 °C |
| Qmax @ Th | 4.5 W |
| Resistance | 1.92 Ohms |
| Size / Dimension [x] | 12.2 mm |
| Size / Dimension [y] | 6 mm |
| Voltage - Max [Max] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.94 | |
Description
General part information
430495 Series
Peltier Module 4.5W @ 25°C 1.9 A 175°C
