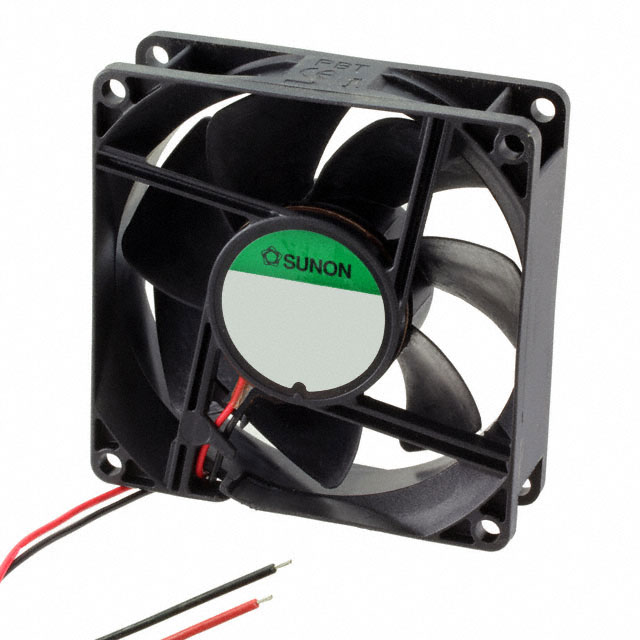

GE80252B1-000U-AE9

Active

Sunon Fans

FAN AXIAL 80X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 80X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	GE80252B1-000U-AE9

Air Flow	60 CFM
Air Flow	1.68 mł/min
Approval Agency	TUV, cUR, UL, CE
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	47.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	4.8 W
RPM	4800 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	102.1 Pa
Static Pressure	0.41 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	10 VDC
Weight	0.231 lb
Weight	104.78 g
Width [y]	25 mm

Part	Material - Blade	Ingress Protection	Width [y]	Fan Type	Current Rating (Amps)	Power (Watts)	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Termination	Approval Agency	Static Pressure	Static Pressure	Voltage - Rated	Lifetime @ Temp.	Weight	Weight	Noise	RPM	Air Flow	Air Flow
Sunon Fans GE80252B1-000U-AE9	Polybutylene Terephthalate (PBT)	IP68 - Dust Tight Waterproof	25 mm	Tubeaxial	0.2 A	4.8 W	Ball	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	10 VDC	27.6 VDC	2 Wire Leads	CE cUR TUV UL	102.1 Pa	0.41 in H2O	24 VDC	70000 Hrs	0.231 lb	104.78 g	47.5 dB	4800 RPM	60 CFM	1.68 mł/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 60.0 CFM (1.68m³/min) 2 Wire Leads
