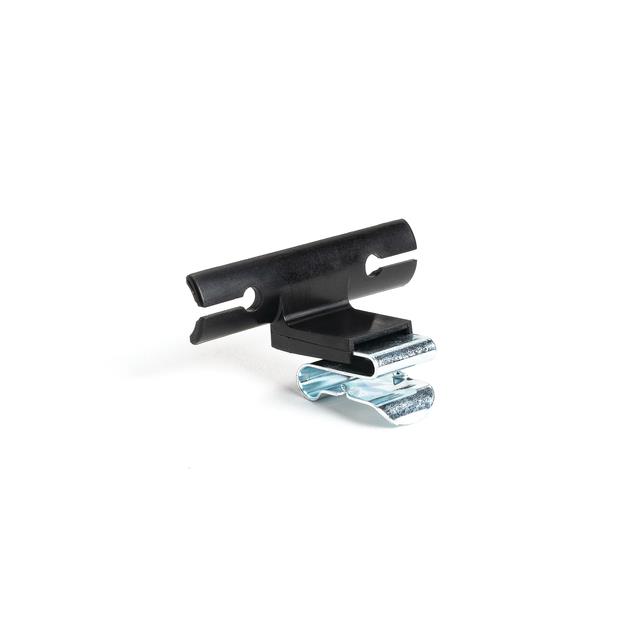

133-04257

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES ASM MOUN CLIP TAPE ON BLK EDGE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CABLE MOUNTING & ACCESSORIES ASM MOUN CLIP TAPE ON BLK EDGE

Technical Specifications

Parameters and characteristics for this part

Part	Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Mounting Type	Width [y]	Width [y]	Color	Height	Height [z]	Material	Height [z]	Length [x]	Length [x]	Features	Height [z]	Panel Hole Size [x]	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [y]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Type Attributes	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Width [x]	Width [x]
HELLERMANNTYTON 133-04486	Bundling Clip	0.11 "	3.05 mm	0.12 "	2.79 mm	Weld Stud	11.18 mm	0.44 in	Gray	4.83 mm	0.19 "	Polyamide (PA66) Nylon 6/6
HELLERMANNTYTON 133-04243	Clip Multi-Function	0.06 in	2.79 mm	0.11 in	1.52 mm	Weld Stud	16 mm	0.63 "	Black		0.43 "	Polyamide (PA66) Nylon 6/6	10.92 mm	0.56 in	14.22 mm
HELLERMANNTYTON 133-04258	Bundling Clip					Fastener	49.78 mm	1.96 "	Silver			Polyphenylene Sulfide (PPS)	0.914 in	2.5 in	63.5 mm	Chemical Resistant	23.22 mm	6.35 mm	0.25 in	12.45 mm	0.49 in	47 mm	1.85 in
HELLERMANNTYTON 133-04043	C-Type Clip					Fir Tree			Black			Polyamide (PA66) Nylon 6/6												Open	6.5 mm	0.276 in	0.256 in	7 mm
HELLERMANNTYTON 133-04257	Clip Multi-Function	0.06 in	2.03 mm	0.08 in	1.52 mm	Weld Stud			Black		0.38 in	Polyamide (PA66) Nylon 6/6	9.65 mm	0.61 in	15.5 mm														0.39 in	9.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.56
Sager	N/A	4000	$ 0.87

General part information

Cable Clip, Multi-Function Black Weld Stud 0.160" (4.06mm)
