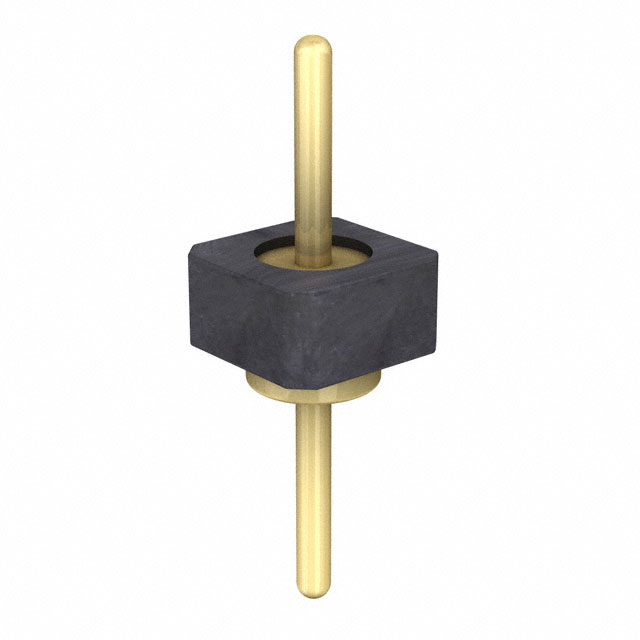

BBL-101-G-E

Active

Samtec Inc.

CONN HEADER VERT 1POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 1POS

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-101-G-E

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish - Post	Insulation Material	Contact Type	Insulation Height	Insulation Height	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Fastening Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Shrouding	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Termination	Insulation Color	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. BBL-101-T-E	Nickel	Liquid Crystal Polymer (LCP)	Male Pin	0.07 in	1.78 mm	1	125 °C	-55 °C	3.18 mm	0.125 in	Circular	Push-Pull	Through Hole	1.27 µm	50 µin	Header	Unshrouded	All	7.62 mm	0.3 in	Solder	Black	1
Samtec Inc. BBL-101-G-E	Nickel	Liquid Crystal Polymer (LCP)	Male Pin	0.07 in	1.78 mm	1	125 °C	-55 °C	3.18 mm	0.125 in	Circular	Push-Pull	Through Hole	1.27 µm	50 µin	Header	Unshrouded	All	7.62 mm	0.3 in	Solder	Black	1	Gold	0.51 µm	20 µin
Samtec Inc. BBL-101-T-F	Nickel	Liquid Crystal Polymer (LCP)	Male Pin	0.085 "	2.15 mm	1	125 °C	-55 °C	3.18 mm	0.125 in	Circular	Push-Pull	Through Hole	1.27 µm	50 µin	Header	Unshrouded	All	0.332 in		Solder	Black	1				8.43 mm	0.122 in	3.1 mm
