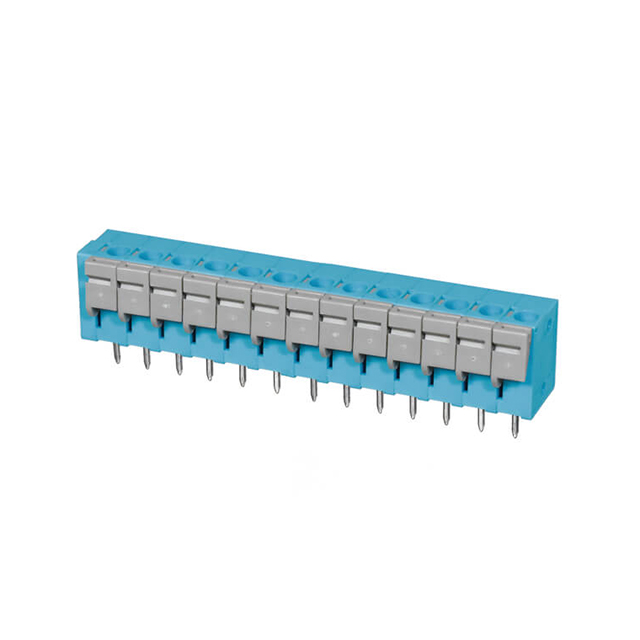

TBL004V-508-13BE-2GY

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 5.08,

Search across all available documentation for this part.

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 5.08,

Technical Specifications

Parameters and characteristics for this part

Specification	TBL004V-508-13BE-2GY

Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	10 A
Features	Push Button Actuated, Interlocking (Side)
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	13
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screwless - Push Button Clamp

Part	Contact Material - Plating	Mating Orientation	Color	Voltage	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Current	Pitch [x]	Pitch [x]	Mounting Type	Positions Per Level	Features
CUI Devices TBL004V-508-12BE-2GY	Copper Alloy - Tin Plated	Vertical with Board	Blue	300 V	Screwless - Push Button Clamp	14 AWG	24 AWG	-40 °C	105 ░C	1	10 A	0.2 in	5.08 mm	Through Hole	12	Interlocking (Side) Push Button Actuated
CUI Devices TBL004-508-03BE-2GY	Copper Alloy - Tin Plated	Horizontal with Board	Blue	300 V	Screwless - Push Button Clamp	14 AWG	24 AWG	-40 °C	105 ░C	1	10 A	0.2 in	5.08 mm	Through Hole	3	Interlocking (Side) Push Button Actuated
CUI Devices TBL004V-508-13BE-2GY	Copper Alloy - Tin Plated	Vertical with Board	Blue	300 V	Screwless - Push Button Clamp	14 AWG	24 AWG	-40 °C	105 ░C	1	10 A	0.2 in	5.08 mm	Through Hole	13	Interlocking (Side) Push Button Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
