337-035-524-104
ActiveEDAC Inc.

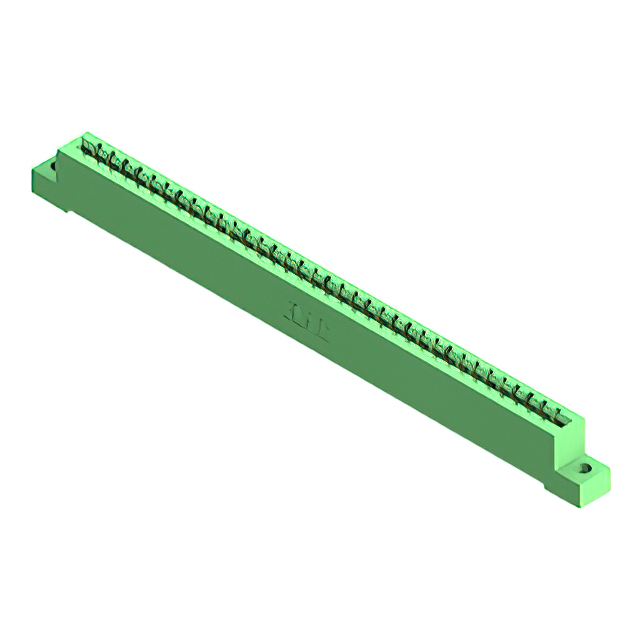

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 35 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-035-524-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 35 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-035-524-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 35 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
337-035 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Number of Positions | Mounting Type | Contact Type | Number of Positions/Bay/Row [custom] | Flange Feature | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Pitch [x] | Pitch [x] | Material - Insulation | Gender | Features | Card Type | Color | Termination Rows | Termination | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Card Guides | Non Specified - Single Edge | Green | 1 | Wire Wrap | Copper Alloy | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole Right Angle | Cantilever | 35 | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Wire Wrap | Copper Alloy | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | Flush Mount Side Opening Unthreaded | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Wire Wrap | Copper Alloy | 3.25 mm | 0.128 " | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Solder | Copper Alloy | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | 4-40 Threaded Insert Top Mount Opening | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Card Guides | Non Specified - Single Edge | Green | 1 | Solder Eyelet(s) | Copper Alloy | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | Side Mount Opening Unthreaded | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Wire Wrap | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole Right Angle | Cantilever | 35 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Wire Wrap | Copper Alloy | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole Right Angle | Cantilever | 35 | Floating Bobbin Flush Mount | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Wire Wrap | Copper Alloy | 2.95 mm | 0.116 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | 4-40 Threaded Insert Top Mount Opening | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Card Guides | Non Specified - Single Edge | Green | 1 | Solder Eyelet(s) | Copper Alloy | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 35 | Through Hole | Cantilever | 35 | Flush Mount Top Opening Unthreaded | Gold | -40 °C | 105 ░C | Single | 0.156 in | 3.96 mm | Polyester Thermoplastic | Female | Non Specified - Single Edge | Green | 1 | Solder | Copper Alloy | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-035 Series
35 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
