1844206

Active

Phoenix Contact

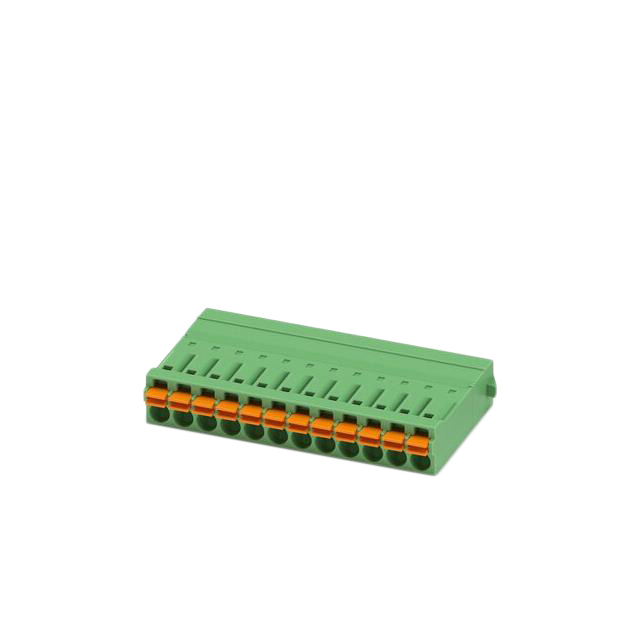

PLUGGABLE TERMINAL BLOCKS IFMC1,5/12-ST-3,5-RN

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS IFMC1,5/12-ST-3,5-RN

Technical Specifications

Parameters and characteristics for this part

Specification	1844206

Color	Green
Contact Mating Finish	Tin
Current - IEC	8 A
Current - UL	8 A
Features	Locking Ramp
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	12
Termination Style	Push-In Spring, Screwless - Leg Spring
Voltage - IEC	320 V
Voltage - UL	150 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm˛ [Max]	1.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛
Wire Strip Length	10 mm

Pluggable Terminal Blocks IFMC1,5/12-ST-3,5-RN

Part	Pitch [x]	Pitch [x]	Positions Per Level	Mounting Type	Termination Style	Current - UL	Voltage - IEC	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Features	Contact Mating Finish	Color	Wire Strip Length	Voltage - UL	Number of Positions	Housing Material	Material Flammability Rating	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1844206	3.5 mm	0.138 in	12	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	8 A	320 V	1	24 AWG	16 AWG	8 A	Locking Ramp	Tin	Green	10 mm	150 V	12	Polyamide (PA) Nylon	UL94 V-0	0.14 mm˛	1.5 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 11.44
Sager	N/A	50	$ 13.46
		100	$ 12.98

General part information

Pluggable Terminal Blocks IFMC1,5/12-ST-3,5-RN
