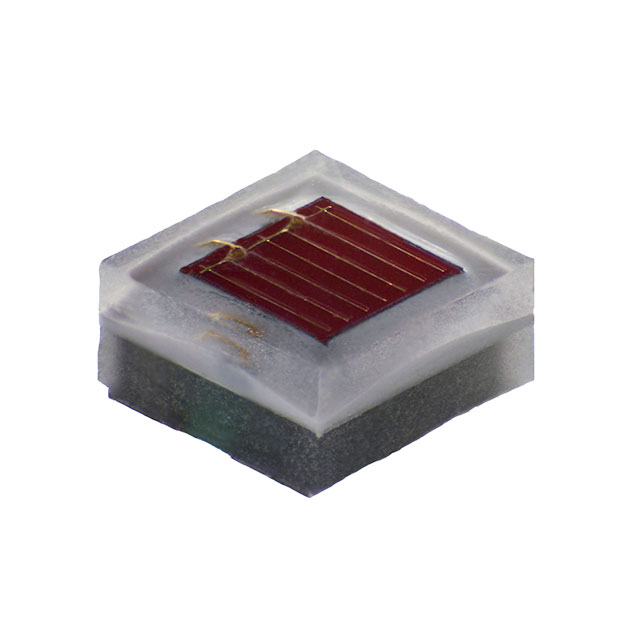

LED XLAMP XQE RED 623NM SMD

Search across all available documentation for this part.

Cree LED

LED XLAMP XQE RED 623NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XQERED-H2-0000-000000502

Color	Red
Current - Max [Max]	1 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	77 lm/W
Luminous Flux @ Current/Temperature	59 lm
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	SMD
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength	623 nm

Part	Viewing Angle	Wavelength	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current - Max [Max]	Color	Package / Case	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Wavelength [Min]	Wavelength [Max]
Cree LED XQERED-H2-0000-000000502	125 °	623 nm	2.2 V	SMD	350 mA	0.063 in	1.6 mm	0.063 in	1.6 mm	Surface Mount	1 A	Red	0606 1616 Metric	77 lm/W	59 lm	0.035 "	0.9 mm
Cree LED XQERED-H2-0000-000000301	125 °		2.2 V	SMD	350 mA	0.063 in	1.6 mm	0.063 in	1.6 mm	Surface Mount	1 A	Red	0606 1616 Metric	64 lm/W	49 lm	0.035 "	0.9 mm	620 nm	630 nm
Cree LED XQERED-H2-0000-000000302	125 °	623 nm	2.2 V	SMD	350 mA	0.063 in	1.6 mm	0.063 in	1.6 mm	Surface Mount	1 A	Red	0606 1616 Metric	64 lm/W	49 lm	0.035 "	0.9 mm
Cree LED XQERED-H0-0000-000000402	125 °	623 nm	2.2 V	SMD	350 mA	0.063 in	1.6 mm	0.063 in	1.6 mm	Surface Mount	1 A	Red	0606 1616 Metric	70 lm/W	54 lm	0.035 "	0.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color XLamp® XQ-E Red 623nm (620nm ~ 625nm) 0606 (1616 Metric)
