MCP809M3-2.93/NOPB
ActiveNational Semiconductor
MCP809 ACTIVE LOW 3-PIN RESET IC
Deep-Dive with AI
Search across all available documentation for this part.
MCP809M3-2.93/NOPB
ActiveNational Semiconductor
MCP809 ACTIVE LOW 3-PIN RESET IC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MCP809M3-2.93/NOPB |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |

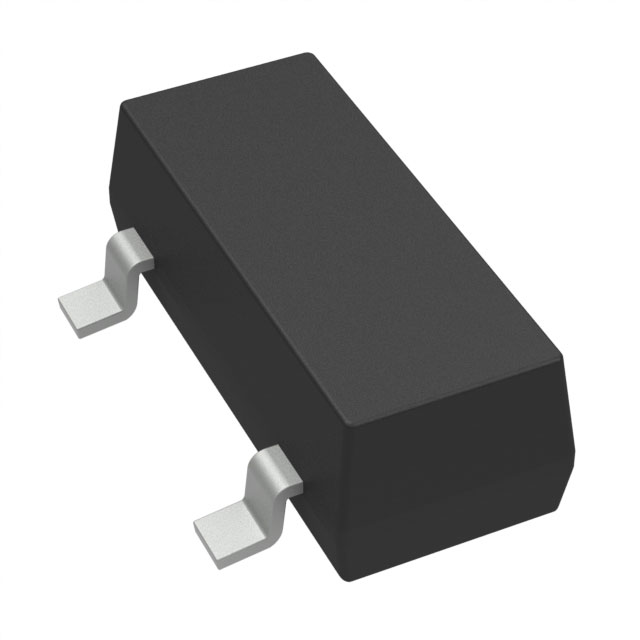

| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reset | Active Low |
| Reset Timeout [Min] | 140 ms |
| Supplier Device Package | SOT-23-3 |
| Type | Simple Reset/Power-On Reset |
| Voltage - Threshold | 2.93 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.53 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.57 | |||
| 25 | $ 0.53 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| Tape & Reel (TR) | 1000 | $ 0.30 | ||
Description
General part information
MCP809 Series
Supervisor 1 Channel SOT-23-3
Documents
Technical documentation and resources
No documents available
