AOZ1374DI-01
ActiveAlpha & Omega Semiconductor Inc.
20V USB SWITCH OCP AND RCB DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOZ1374DI-01
ActiveAlpha & Omega Semiconductor Inc.
20V USB SWITCH OCP AND RCB DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ1374DI-01 |
|---|---|
| Current - Output (Max) [Max] | 3.5 A |
| Fault Protection | Current Limiting (Fixed), UVLO, Over Temperature, Reverse Current, Over Voltage |
| Features | Auto Restart, Latch Function |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |

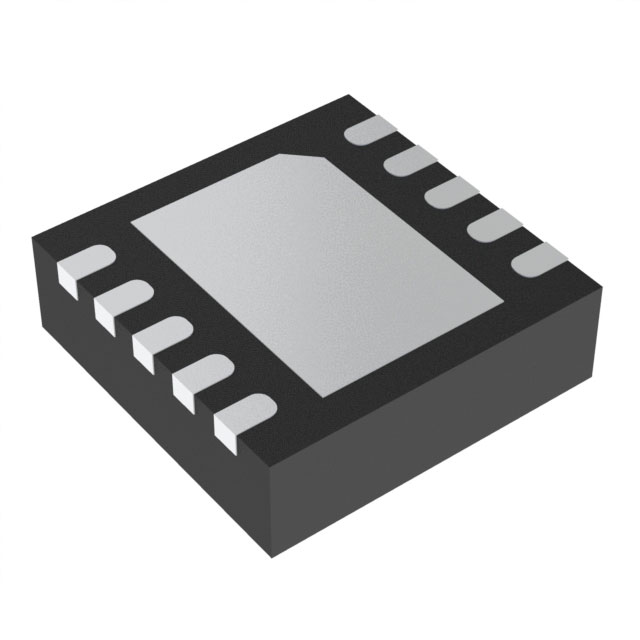

| Package / Case | 10-VFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 36 mOhm |
| Supplier Device Package | 10-DFN (3x3) |
| Switch Type | USB Switch |
| Voltage - Load [Max] | 23 V |
| Voltage - Load [Min] | 3.4 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.69 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.86 | |||
| Tape & Reel (TR) | 5000 | $ 0.83 | ||
| 10000 | $ 0.80 | |||
Description
General part information
AOZ1374 Series
Power Switch/Driver 1:1 N-Channel 3.5A 10-DFN (3x3)
