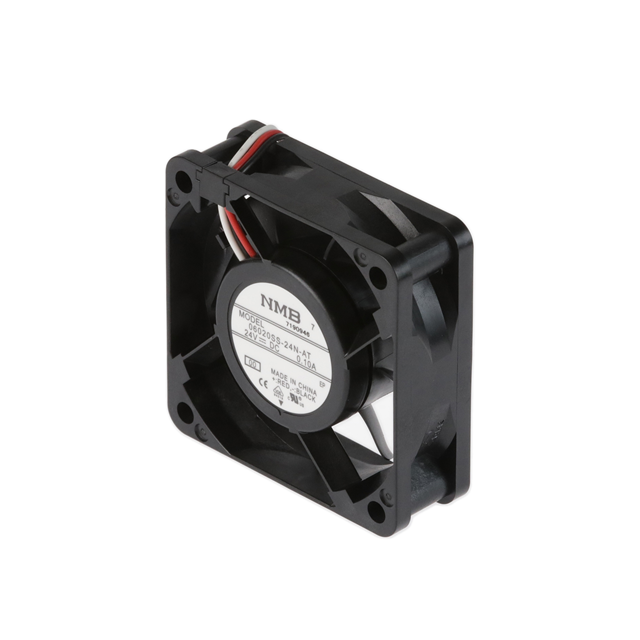

06020SS-24N-AT-00
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, SLEEVE BEARING, 20.48 CFM
Deep-Dive with AI
Search across all available documentation for this part.
06020SS-24N-AT-00
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, SLEEVE BEARING, 20.48 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 06020SS-24N-AT-00 |
|---|---|
| Air Flow | 20.5 CFM |
| Air Flow | 0.574 m³/min |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 70 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 30.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.68 W |
| RPM | 4400 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 49.8 Pa |
| Static Pressure | 0.2 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 0.124 lb |
| Weight | 56.25 g |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
06020SS Series
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Sleeve 20.5 CFM (0.574m³/min) 2 Wire Leads
