CAB425RF-0200-A-1

Active

GCT

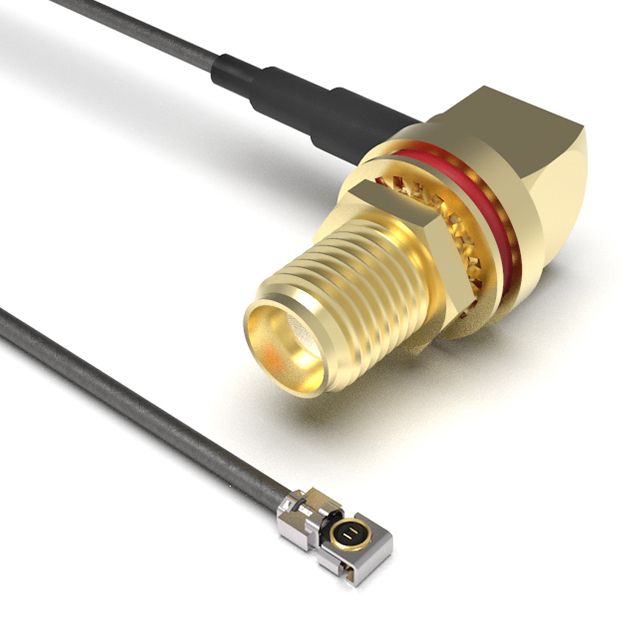

CBL ASSY SMA-MHF4L LK J-P 7.874"

Search across all available documentation for this part.

Active

GCT

CBL ASSY SMA-MHF4L LK J-P 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	CAB425RF-0200-A-1

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	IPEX MHF4L LK (Locking) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type [diameter]	1.37 mm
Color	Black
Features	IP Rated Unmated
Frequency - Max [Max]	6000 MHz
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	SMA to IPEX MHF4L LK

Part	Cable Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	1st Connector Mounting Feature	1st Connector	Color	1st Contact Gender	Cable Type [diameter]	2nd Connector Mounting Type	2nd Contact Gender	Length	Length	2nd Connector	Ingress Protection	Overall Impedance	1st Connector Mounting Type	Features	Style
GCT CAB425RF-0200-A-1	50 Ohms	85 °C	-40 °C	6000 MHz	Bulkhead - Front Side Nut	Right Angle SMA Jack	Black	Female	1.37 mm	Free Hanging (In-Line)	Female	7.874 in	200 mm	IPEX MHF4L LK (Locking) Plug Right Angle	IP67/IP68 - Dust Tight Waterproof	50 Ohms	Panel Mount	IP Rated Unmated	SMA to IPEX MHF4L LK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 11.45

General part information

Cable Assembly Coaxial SMA to IPEX MHF4L LK 1.37mm OD Coaxial Cable 7.874" (200.00mm)
