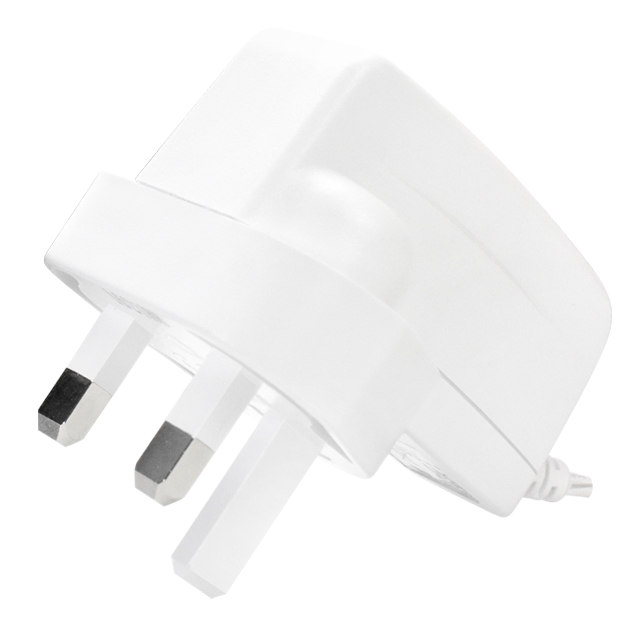

SWI5-9-BW-P6
ActiveCUI Inc.
WALL MOUNT AC ADAPTERS AC-DC, 9 VDC, .6 A, SW, WALL-PLUG, UK, P6 CENTER POS PLUG, LEVEL VI, WHITE
Deep-Dive with AI
Search across all available documentation for this part.
SWI5-9-BW-P6
ActiveCUI Inc.
WALL MOUNT AC ADAPTERS AC-DC, 9 VDC, .6 A, SW, WALL-PLUG, UK, P6 CENTER POS PLUG, LEVEL VI, WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SWI5-9-BW-P6 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 600 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class I) |
| Input Connector | BS 1363 |
| Input Type | Fixed Blade |
| No Load Power Consumption | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 5.4 W |
| Region Utilized | United Kingdom |
| Size / Dimension [x] | 67 mm |
| Size / Dimension [x] | 2.64 in |
| Size / Dimension [y] | 49.6 mm |
| Size / Dimension [y] | 1.95 in |
| Size / Dimension [z] | 2.55 in |
| Size / Dimension [z] | 64.8 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SWI5-B Series
Wall Mount AC Adapters ac-dc, 9 Vdc, .6 A, SW, wall-plug, UK, P6 center pos plug, level VI, white
Documents
Technical documentation and resources
No documents available
