169-60018

Active

HELLERMANNTYTON

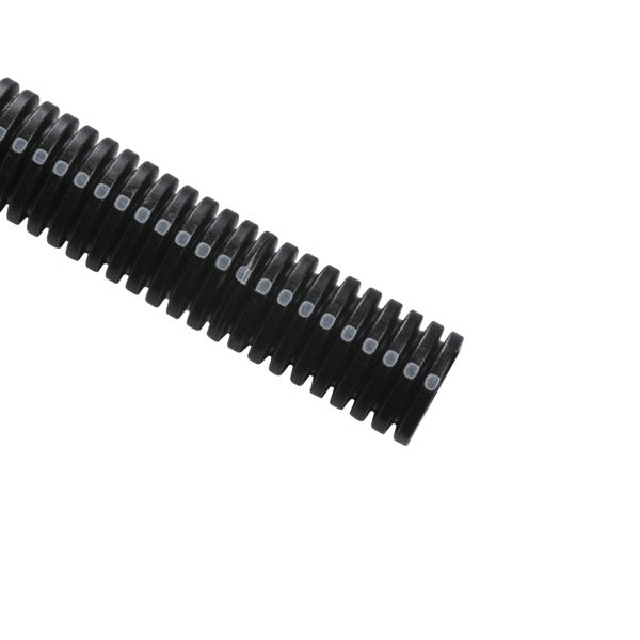

CONVOLUTED TUBING, SLIT, .38" DIA, PA6, BLACK WITH GRAY STRIPE, 100FT/BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

169-60018

Active

HELLERMANNTYTON

CONVOLUTED TUBING, SLIT, .38" DIA, PA6, BLACK WITH GRAY STRIPE, 100FT/BOX

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	169-60018

Abrasion Protection	Puncture Resistant, Fray Resistant
Diameter - Inside, Expanded [diameter]	0.38 in
Diameter - Inside, Expanded [diameter]	9.65 mm
Diameter - Inside, Non-Expanded [diameter]	0.375 in
Diameter - Inside, Non-Expanded [diameter]	9.53 mm
Diameter - Outside, Non-Expanded [diameter]	0.497 "
Diameter - Outside, Non-Expanded [diameter]	12.62 mm
Environment Protection	Weather Resistant
Features	Vibration Resistant, Dispenser Box Supplied
Length	100 ft
Length	30.48 m
Liquid Protection	Water Resistant, Fluid Resistant
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	149 °C
Operating Temperature [Min]	-40 °C
Type	Slit Wrap
Type Attributes	Slit Harness
Wall Thickness	0.13 mm
Wall Thickness	0.005 "

169-60 Series

Part	Type Attributes	Wall Thickness	Wall Thickness	Liquid Protection	Abrasion Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length [x]	Type	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Environment Protection	Features	Material Flammability Rating	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Heat Protection	Length [x]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length	Length	Spool Size	Spool Size	Material	Color
HELLERMANNTYTON 169-60021	Slit Harness	0.15 mm	0.006 in	Fluid Resistant Water Resistant	Fray Resistant Puncture Resistant	32.18 mm	1.267 in	149 °C	-40 °C	15.24 m	50 ft	Slit Wrap	1.055 in	26.8 mm	Weather Resistant	Dispenser Box Supplied Vibration Resistant	UL94 HB	1 in	25.4 mm
HELLERMANNTYTON 169-60120	Convoluted Corrugated	0.1 mm	0.004 in	Fluid Resistant				125 °C	-40 °C		3200 ft	Protective Hose Wire Loom					UL94 V-2			10.16 mm	0.4 in	Flame Retardant	975.36 m	6.76 mm	0.266 in
HELLERMANNTYTON 169-60121	Convoluted Corrugated	0.13 mm	0.005 "	Fluid Resistant				125 °C	-40 °C	548.64 m		Protective Hose Wire Loom					UL94 V-2			13.36 mm	0.526 in	Flame Retardant		9.65 mm	0.38 in	1800 ft
HELLERMANNTYTON 169-60123	Convoluted Corrugated	0.13 mm	0.005 "					125 °C	-40 °C			Protective Hose Wire Loom					UL94 V-2			17.78 mm	0.7 "	Flame Retardant		13.11 mm	0.516 in		Enter Number of Feet in Order Quantity	1100 ft	335.28 m
HELLERMANNTYTON 169-60122	Convoluted Corrugated	0.13 mm	0.005 "	Fluid Resistant				125 °C	-40 °C		1400 ft	Protective Hose Wire Loom					UL94 V-2			15.16 mm	0.597 in	Flame Retardant	426.72 m	11.1 mm	0.437 in
HELLERMANNTYTON 169-60127	Convoluted Corrugated	0.15 mm	0.006 in	Fluid Resistant				125 °C	-40 °C	60.96 m		Protective Hose Wire Loom					UL94 V-2			38.1 mm	1.5 in	Flame Retardant		31.93 mm	1.257 "	200 '
HELLERMANNTYTON 169-60018	Slit Harness	0.13 mm	0.005 "	Fluid Resistant Water Resistant	Fray Resistant Puncture Resistant	12.62 mm	0.497 "	149 °C	-40 °C	30.48 m		Slit Wrap	0.38 in	9.65 mm	Weather Resistant	Dispenser Box Supplied Vibration Resistant	UL94 HB	0.375 in	9.53 mm							100 ft
HELLERMANNTYTON 169-60533	Slit Harness	0.13 mm	0.005 "	Fluid Resistant Water Resistant	Abrasion Resistant	24.13 mm	0.95 in	93 °C	-40 °C		550 ft	Slit Wrap	0.759 in	19.28 mm	Weather Resistant	Impact Resistant Vibration Resistant	UL94 HB	0.75 in	19.05 mm				167.64 m							Polyethylene (PE)	Red
HELLERMANNTYTON 169-60126	Convoluted Corrugated	0.15 mm	0.006 in	Fluid Resistant				125 °C	-40 °C	91.44 m		Protective Hose Wire Loom					UL94 V-2			33.12 mm	1.304 in	Flame Retardant		27.15 mm	1.069 in	300 ft
HELLERMANNTYTON 169-60024	Convoluted Corrugated	0.13 mm	0.005 "					125 °C	-40 °C		700 '	Protective Hose Wire Loom					UL94 HB			21.26 mm	0.837 "		213.36 m	16.23 mm	0.639 in						Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 112.28
		2	$ 103.27
		3	$ 98.33
		5	$ 92.45
		7	$ 88.77
		10	$ 85.03
		25	$ 80.52
Newark	Spool of 100	1	$ 165.24
		10	$ 153.50
		25	$ 143.43
		50	$ 138.40
		100	$ 133.37
