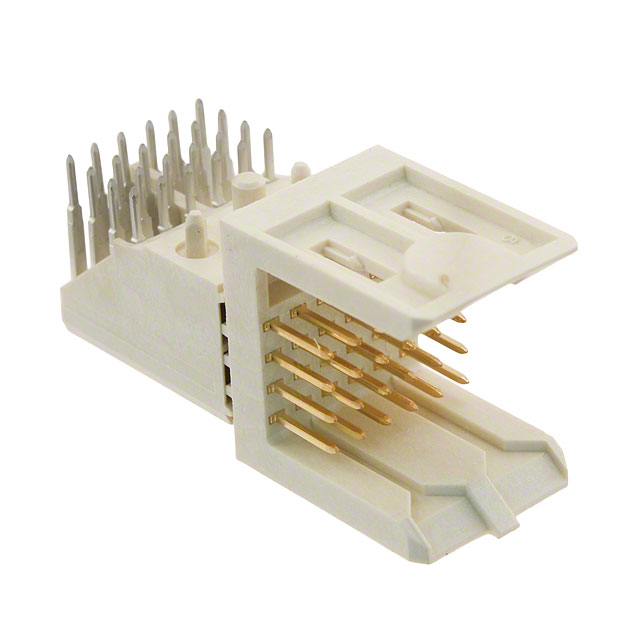

HM1L41AAP000H6PLF

Active

Amphenol ICC (FCI)

CONN HEADER 24POS EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-12-446 Other Related Document

HM1L41AAP000H6PLF

Active

Amphenol ICC (FCI)

CONN HEADER 24POS EDGE MNT

Deep-Dive with AI

DocumentsDatasheet gs-12-446 Other Related Document

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HM1L41AAP000H6PLF

Color	Natural, White
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	24
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

HM1L41 Series

Part	Number of Positions	Number of Positions Loaded	Pitch [x]	Pitch [x]	Color	Material Flammability Rating	Features	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Termination	Connector Style	Number of Positions Loaded
Amphenol ICC (FCI) HM1L41DDP000H6PLF	24	All	0.079 in	2 mm	Natural White	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Press-Fit
Amphenol ICC (FCI) HM1L41BAP000H6PLF	24	All	0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	1.27 µm	50 µin	Board Edge Right Angle Through Hole	Header Male Pins	Solder
Amphenol ICC (FCI) HM1L41AAP000H6P	24	All	0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Solder	High Speed
Amphenol ICC (FCI) HM1L41LDP000H6P	24	All	0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Press-Fit
Amphenol ICC (FCI) HM1L41AAP000H6PLF	24	All	0.079 in	2 mm	Natural White	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Solder
Amphenol ICC (FCI) HM1L41ZAP240H6PLF	24		0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Solder		17
Amphenol ICC (FCI) HM1L41AAP426H6PLF	24	All	0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	1.27 µm	50 µin	Board Edge Right Angle Through Hole	Header Male Pins	Solder
Amphenol ICC (FCI) HM1L41ZDP424H6PLF	24	All	0.079 in	2 mm	Natural White	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Press-Fit
Amphenol ICC (FCI) HM1L41AAP000H6LF	24	All	0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	1.27 µm	50 µin	Board Edge Right Angle Through Hole	Header Male Pins	Solder
Amphenol ICC (FCI) HM1L41DAP000H6P	24	All	0.079 in	2 mm	Natural	UL94 V-0	Board Guide	Gold	-55 °C	125 °C	0.76 Ám	30 Áin	Board Edge Right Angle Through Hole	Header Male Pins	Solder	High Speed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.33
		10	$ 4.75
		25	$ 4.37
		40	$ 4.15
		80	$ 3.85
		230	$ 3.45
		440	$ 3.22
		945	$ 2.99
		2400	$ 2.73

Description

General part information

HM1L41 Series

24 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural, White
