50.134PA7035

Active

Jacob GmbH

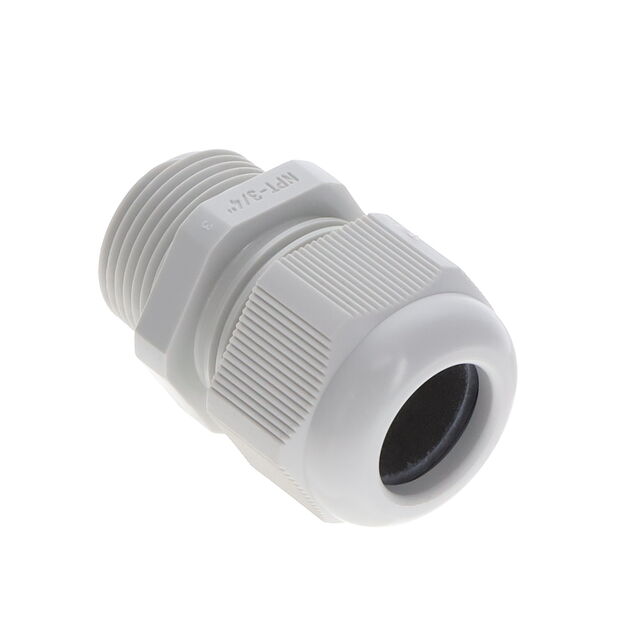

CABLE GLAND 14-18.01MM 3/4" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 14-18.01MM 3/4" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.134PA7035

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/4 NPT
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Includes	Material	Thread Size	Ingress Protection	Color
Jacob GmbH 50.134/EMV/R	8 mm	0.315 in	0.433 in	11 mm	0.63 "	16 mm	100 °C	-40 °C	Cable Gland	O-Ring Seal	Brass Nickel Plated	3/4 NPT	IP68 - Dust Tight Waterproof	Silver
Jacob GmbH 50.134PA7035	14 mm	0.551 in	0.591 in	15 mm	0.709 in	18.01 mm	100 °C	-40 °C	Cable Gland	Sealing Ring		3/4 NPT	IP68 - Dust Tight Waterproof	Gray
Jacob GmbH 50.134PAR7035	9 mm	0.354 in	0.591 in	15 mm	0.63 "	16 mm	100 °C	-40 °C	Cable Gland	Sealing Ring		3/4 NPT	IP68 - Dust Tight Waterproof	Gray
Jacob GmbH 50.134 PA/SW	14 mm	0.551 in	0.591 in	15 mm	0.709 in	18.01 mm	100 °C	-40 °C	Cable Gland	Sealing Ring		3/4 NPT	IP68 - Dust Tight Waterproof	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 3/4" NPT Gray
