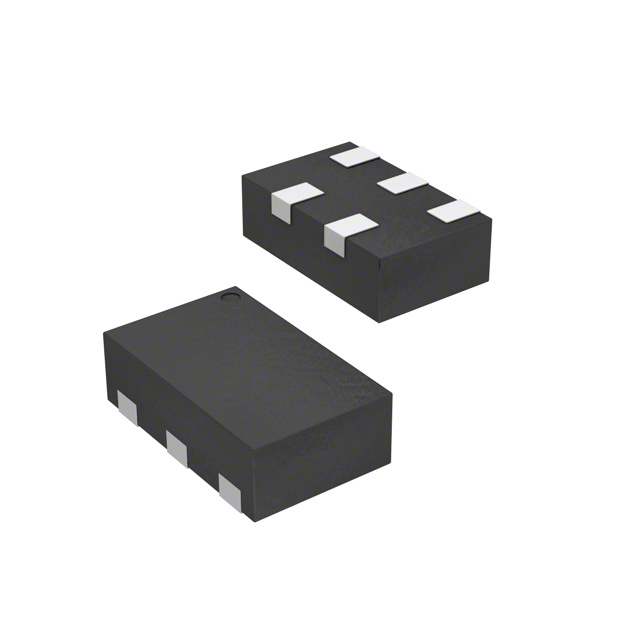

ESD PROTECTION DEVICE, 25 V, SLP1007N5T, 5 PINS, 5 V, 100 W, RAILCLAMP SERIES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCLAMP7522T.TNT
ActiveSemtech Corporation
ESD PROTECTION DEVICE, 25 V, SLP1007N5T, 5 PINS, 5 V, 100 W, RAILCLAMP SERIES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCLAMP7522T.TNT |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 0.25 pF |
| Current - Peak Pulse (10/1000µs) | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 5-XFDFN |
| Power - Peak Pulse | 100 W |
| Power Line Protection | True |
| Supplier Device Package | SLP1007N5T |
| Type | Steering |
| Unidirectional Channels [custom] | 3 |
| Voltage - Breakdown (Min) [Min] | 6.5 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 25 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
