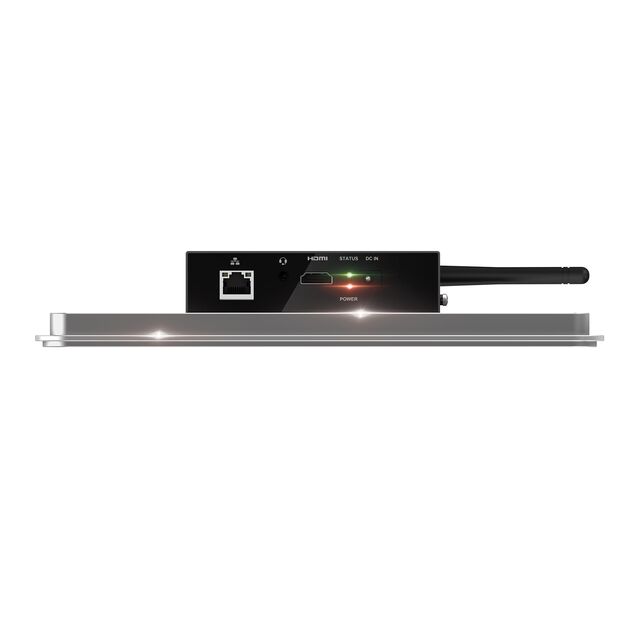

ED-HMI2020-101C-1232

Active

EDATEC

SBC 1.5GHZ 4 CORE 2GB RAM

Search across all available documentation for this part.

Active

EDATEC

SBC 1.5GHZ 4 CORE 2GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	ED-HMI2020-101C-1232

Cooling Type	Heat Plate
Core Processor	Raspberry Pi CM4 # CM4102032: ARM Cortex-A72
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Form Factor	10.1 in
Number of Cores	4
Power (Watts)	20 W
RAM Capacity/Installed	2 GB
Speed	1.5 GHz
Storage Interface	eMMC
USB	USB 2.0 (1)
Video Outputs	HDMI

Part	Ethernet	Storage Interface	Form Factor	Power (Watts)	Speed	Video Outputs	Cooling Type	RAM Capacity/Installed	Number of Cores	USB	Core Processor	Operating Temperature [Min]	Operating Temperature [Max]
EDATEC ED-HMI2020-101C-1416	10 Mbps 100 Mbps 1000 Mbps	eMMC	10.1 in	20 W	1.5 GHz	HDMI	Heat Plate	4 GB	4	USB 2.0 (1)	Raspberry Pi CM4 # CM4104016: ARM Cortex-A72
EDATEC ED-HMI2020-101C-1232	10 Mbps 100 Mbps 1000 Mbps	eMMC	10.1 in	20 W	1.5 GHz	HDMI	Heat Plate	2 GB	4	USB 2.0 (1)	Raspberry Pi CM4 # CM4102032: ARM Cortex-A72
EDATEC ED-HMI2020-101C-1808	10 Mbps 100 Mbps 1000 Mbps	eMMC	10.1 in	20 W	1.5 GHz	HDMI	Heat Plate	8 GB	4	USB 2.0 (1)	Raspberry Pi CM4 # CM4108008: ARM Cortex-A72	-25 °C	60 °C
EDATEC ED-HMI2020-101C-1208	10 Mbps 100 Mbps 1000 Mbps	eMMC	10.1 in	20 W	1.5 GHz	HDMI	Heat Plate	2 GB	4	USB 2.0 (1)	Raspberry Pi CM4 # CM4102008: ARM Cortex-A72	-25 °C	60 °C
EDATEC ED-HMI2020-101C-1408	10 Mbps 100 Mbps 1000 Mbps	eMMC	10.1 in	20 W	1.5 GHz	HDMI	Heat Plate	4 GB	4	USB 2.0 (1)		-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 276.00

General part information

Single Board Computer 1.5GHz 4 Core 2GB RAM Raspberry Pi CM4 # CM4102032: ARM Cortex-A72

Technical documentation and resources
