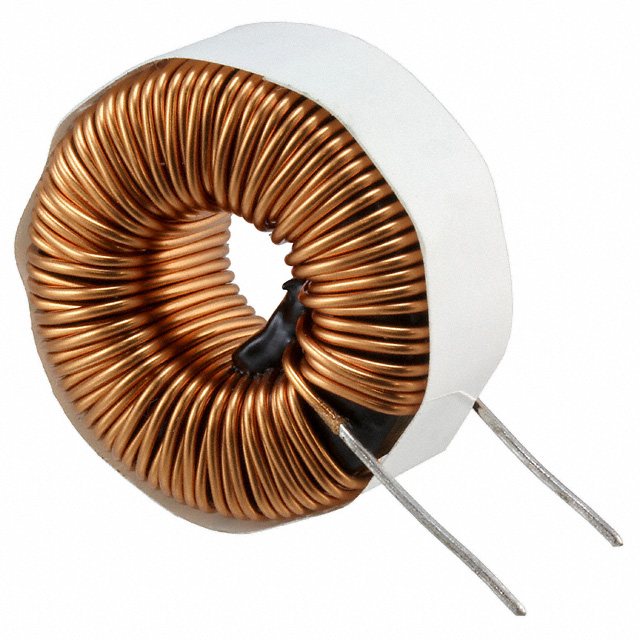

2300LL-561-V-RC

Active

Bourns Inc.

FIXED IND 560UH 4A 103 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2300LL-561-V-RC

Active

Bourns Inc.

FIXED IND 560UH 4A 103 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2300LL-561-V-RC

Current Rating (Amps)	4 A
DC Resistance (DCR) [Max]	103 mOhm
Inductance	560 µH
Material - Core	Sendust
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Vertical (Open)
Shielding	Shielded
Size / Dimension [diameter]	1.28 "
Size / Dimension [diameter]	32.51 mm
Size / Dimension [y]	16.51 mm
Size / Dimension [y]	0.65 in
Tolerance	15 %
Type	Toroidal

2300LL Series

Part	Current Rating (Amps)	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Package / Case	DC Resistance (DCR) [Max]	Material - Core	Type	Shielding	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. 2300LL-390-V-RC	12.2 A	Through Hole	15 %	-55 °C	125 °C	39 µH	Radial Vertical (Open)	11 mOhm	Sendust	Toroidal	Shielded	16.51 mm	1.28 "	0.65 in	32.51 mm
Bourns Inc. 2300LL-120-H-RC	19.6 A	Through Hole	15 %	-55 °C	125 °C	12 µH	Radial Horizontal (Open)		Sendust	Toroidal	Shielded		1.28 "		32.51 mm	4 mOhm	16.51 mm	16.51 mm
Bourns Inc. 2300LL-100-H-RC	20.8 A	Through Hole	15 %	-55 °C	125 °C	10 µH	Radial Horizontal (Open)		Sendust	Toroidal	Shielded		1.28 "		32.51 mm	4 mOhm	16.51 mm	16.51 mm
Bourns Inc. 2300LL-102-H-RC	3.5 A	Through Hole	15 %	-55 °C	125 °C	1 mH	Radial Horizontal (Open)	137 mOhm	Sendust	Toroidal	Shielded		1.28 "		32.51 mm		16.51 mm	16.51 mm
Bourns Inc. 2300LL-561-H-RC	4 A	Through Hole	15 %	-55 °C	125 °C	560 µH	Radial Horizontal (Open)	103 mOhm	Sendust	Toroidal	Shielded		1.28 "		32.51 mm		16.51 mm	16.51 mm
Bourns Inc. 2300LL-821-V-RC	3.6 A	Through Hole	15 %	-55 °C	125 °C	820 µH	Radial Vertical (Open)	123 mOhm	Sendust	Toroidal	Shielded	16.51 mm	1.28 "	0.65 in	32.51 mm
Bourns Inc. 2300LL-3R9-V-RC		Through Hole	20 %	-55 °C	125 °C	3.9 µH	Radial Vertical (Open)		Sendust	Toroidal	Shielded	16.51 mm	1.28 "	0.65 in	32.51 mm	2 mOhm
Bourns Inc. 2300LL-270-H-RC	17 A	Through Hole	15 %	-55 °C	125 °C	27 µH	Radial Horizontal (Open)	6 mOhm	Sendust	Toroidal	Shielded		1.28 "		32.51 mm		16.51 mm	16.51 mm
Bourns Inc. 2300LL-561-V-RC	4 A	Through Hole	15 %	-55 °C	125 °C	560 µH	Radial Vertical (Open)	103 mOhm	Sendust	Toroidal	Shielded	16.51 mm	1.28 "	0.65 in	32.51 mm
Bourns Inc. 2300LL-330-V-RC	13 A	Through Hole	15 %	-55 °C	125 °C	33 µH	Radial Vertical (Open)	10 mOhm	Sendust	Toroidal	Shielded	16.51 mm	1.28 "	0.65 in	32.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.28
		60	$ 3.46
		120	$ 3.17
		1020	$ 2.79

Description

General part information

2300LL Series

560 µH Shielded Toroidal Inductor 4 A 103mOhm Max Radial, Vertical (Open)

Documents

Technical documentation and resources
