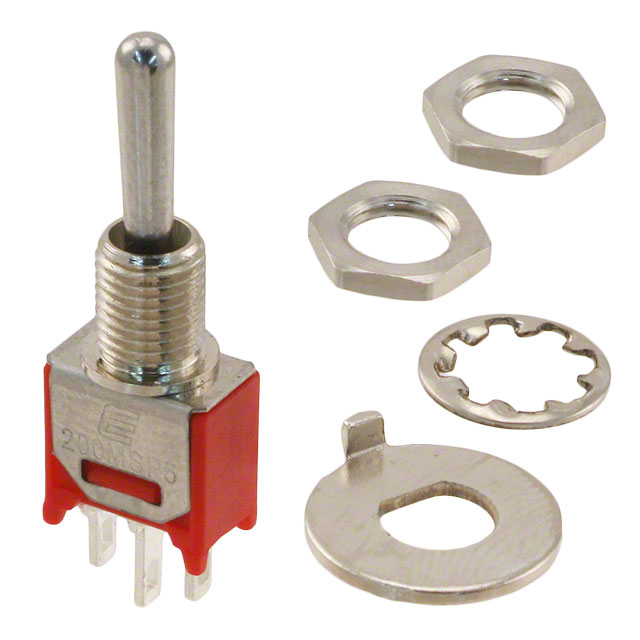

200MSP5T1B1M1QEH
ActiveE-Switch
SWITCH TOGGLE SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
200MSP5T1B1M1QEH
ActiveE-Switch
SWITCH TOGGLE SPDT 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 200MSP5T1B1M1QEH |
|---|---|
| Actuator Length [x] | 9.4 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 10-48 |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 30000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 4.95 mm |
| Switch Function | On-Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
200MSP5 Series
| Part | Current Rating (Amps) | Electrical Life | Actuator Material | Bushing Thread | Actuator Type | Voltage Rating - DC | Circuit | Actuator Length [x] | Termination Style | Features | Mounting Type | Panel Cutout Dimensions [diameter] | Switch Function | Illumination | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 3 A | 30000 Cycles | Brass Chrome Plated | 10-48 | Standard Round | 28 V | SPDT | 0.5 in | PC Pin | Epoxy Sealed Terminals | Panel Mount Right Angle Vertical | 4.95 mm | On-Off-Mom | Non-Illuminated | 120 V | -30 ░C | 85 °C |
E-Switch | 3 A | 30000 Cycles | Brass Chrome Plated | 10-48 | Standard Round | 28 V | SPDT | 9.4 mm | Solder Lug | Epoxy Sealed Terminals | 4.95 mm | On-Off-Mom | Non-Illuminated | 120 V | -30 ░C | 85 °C | |
E-Switch | 3 A | 30000 Cycles | Brass Chrome Plated | 1/4-40 | Standard Round | 28 V | SPDT | 10.41 mm | Solder Lug | Epoxy Sealed Terminals | 0.25 in | On-Off-Mom | Non-Illuminated | 120 V | -30 ░C | 85 °C | |
E-Switch | 0.4 VA | 30000 Cycles | Brass Chrome Plated | 10-48 | Standard Round | 20 V | SPDT | 5.33 mm | PC Pin | Epoxy Sealed Terminals | Panel Mount Right Angle | 4.95 mm | On-Off-Mom | Non-Illuminated | 20 V | -30 ░C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.71 | |
| 10 | $ 2.42 | |||
| 25 | $ 2.30 | |||
| 50 | $ 2.21 | |||
| 135 | $ 2.10 | |||
| 270 | $ 2.04 | |||
Description
General part information
200MSP5 Series
Toggle Switch SPDT Panel Mount
