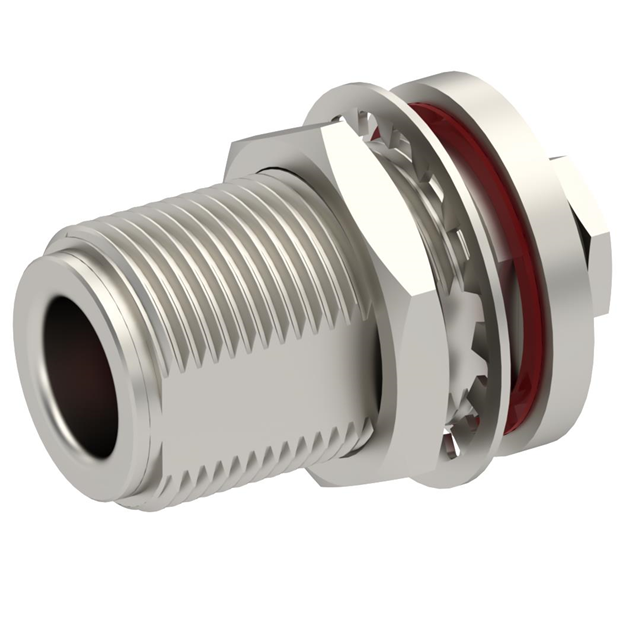

4501-7051-003

Active

Radiall USA, Inc.

N / STRAIGHT JACK FEMALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT JACK FEMALE CLAMP T

Technical Specifications

Parameters and characteristics for this part

Specification	4501-7051-003

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Clamp

Part	Number of Ports	Body Material	Center Contact Plating	Center Contact Material	Housing Color	Connector Type	Mounting Feature	Body Finish	Dielectric Material	Impedance	Cable Group	Connector Style	Shield Termination	Frequency - Max [Max]	Contact Termination
Radiall USA, Inc. 4501-7051-003	1	Brass	Gold	Beryllium Copper	Silver	Female Socket Jack	Bulkhead - Front Side Nut	Nickel	Polytetrafluoroethylene (PTFE)	50 Ohms	188 316 RG-174	N Type	Clamp	11 GHz	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 69.38

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
