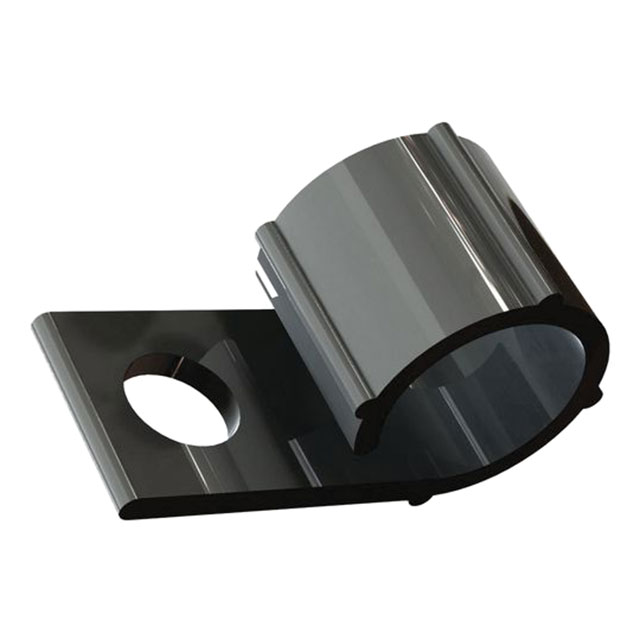

WHC-1500-01BK

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 38.1 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 53.9 MM, 12.7 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN

WHC-1500-01BK

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 38.1 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 53.9 MM, 12.7 MM

Deep-Dive with AI

DocumentsDrawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WHC-1500-01BK

Color	Black
Length [x]	2.125 in
Length [x]	53.97 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.1 in
Material Thickness	2.54 mm
Mounting Type	Fastener
Opening Size [diameter]	1.5 in
Opening Size [diameter]	38.1 mm
Panel Hole Size	5.18 mm
Panel Hole Size [diameter]	0.204 in
Screw Size	M5
Screw Size	#10
Type	Clip, P-Type
Type Attributes	Open

WHC-1500 Series

Part	Color	Panel Hole Size [diameter]	Panel Hole Size	Screw Size	Screw Size	Material Thickness	Material Thickness	Type	Mounting Type	Length [x]	Length [x]	Material Flammability Rating	Opening Size [diameter]	Opening Size [diameter]	Type Attributes	Material
Essentra Access Solutions WHC-1500-01BK	Black	0.204 in	5.18 mm	M5	#10	0.1 in	2.54 mm	Clip P-Type	Fastener	2.125 in	53.97 mm	UL94 V-2	1.5 in	38.1 mm	Open	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.64
		25	$ 0.58
		50	$ 0.53
		100	$ 0.49
		250	$ 0.44
		500	$ 0.41
		1000	$ 0.38
		2500	$ 0.35
Newark	Each	1	$ 0.40
		50000	$ 0.35

Description

General part information

WHC-1500 Series

Wire harness cable clamp can be preinstalled to the chassis with cables inserted at a later time. The cable can be removed for wiring changes or replacements.

Documents

Technical documentation and resources

Drawing EN

Datasheet
