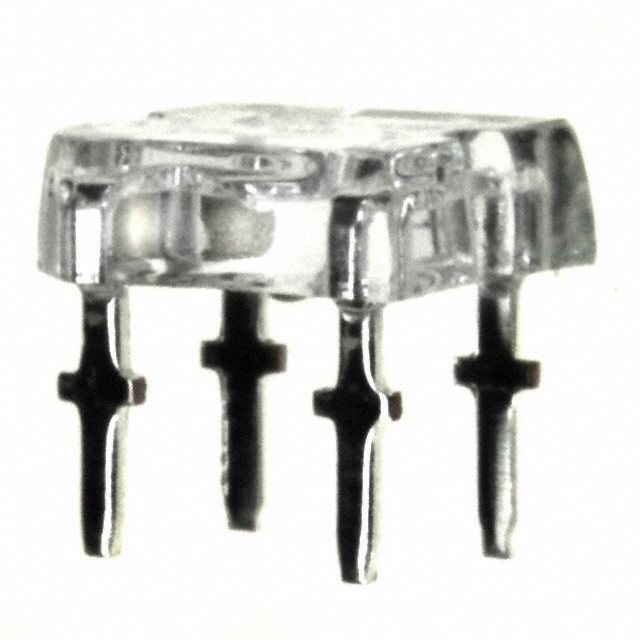

R20BLU-F-0160

Active

Bivar Inc.

LED, THROUGH HOLE, 7.6MM X 7.6MM BLUE, 400MCD, WATER CLEAR LENS, 160 DEG VIEWING ANGLE / TUBE

Search across all available documentation for this part.

Active

Bivar Inc.

LED, THROUGH HOLE, 7.6MM X 7.6MM BLUE, 400MCD, WATER CLEAR LENS, 160 DEG VIEWING ANGLE / TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Transparency	Millicandela Rating	Wavelength - Dominant	Height (Max) [Max] [z]	Color	Lens Style	Lens Size	Lens Color	Current - Test	Configuration	Package / Case	Package / Case	Package / Case	Viewing Angle
Bivar Inc. R20BLU-F-0160	7.6 mm	7.6 mm	Through Hole	3.4 V	Clear	150 mcd	470 nm	4.4 mm	Blue	Square with Flat Top	7.6 mm	Colorless	20 mA	Standard	4-DIP	0.2 in	0.2 in	160 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.4V 4-DIP (0.200", 5.08mm)
