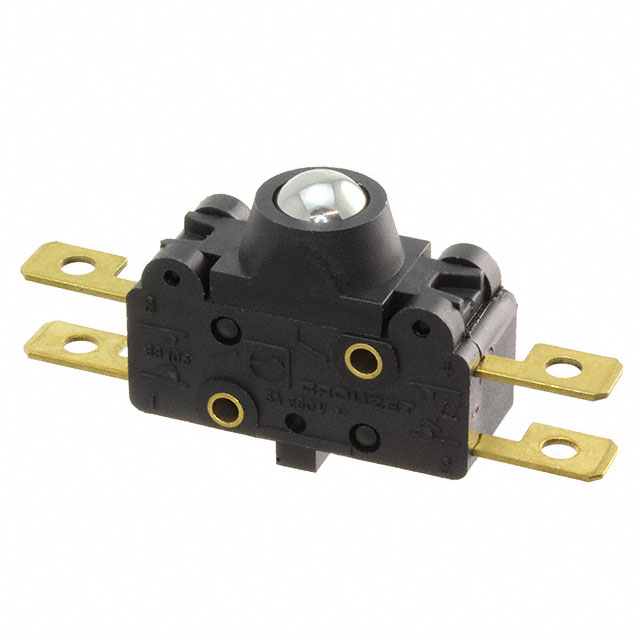

X0228914

Active

Crouzet

SWITCH SNAP ACTION SPDT 10A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Differential Travel	Differential Travel	Termination Style	Switch Function	Circuit	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Type	Current Rating (Amps)	Pretravel	Pretravel	Mechanical Life	Mounting Type	Overtravel	Overtravel
Crouzet X0228914	102 gf	0.5 mm	0.02 in	Quick Connect - 0.250" (6.3mm)	On-Mom	SPDT (DB/DM)	408 gf	85 °C	-20 C	250 V	Ball Bearing Plunger	10 A	1.5 mm	0.06 in	10000000 Cycles	Chassis Mount
Crouzet 83106097	102 gf	0.5 mm	0.02 in	Solder Lug	On-Mom	SPDT (DB/DM)	408 gf	85 °C	-40 °C	250 V	Round (Pin Plunger)	5 A	0.7 mm	0.028 in	10000000 Cycles	Chassis Mount	0.026 in	0.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.67

General part information

Switch SPDT (DB/DM) Chassis Mount
