BXRC-20B4001-C-73

Active

BRIDGELUX

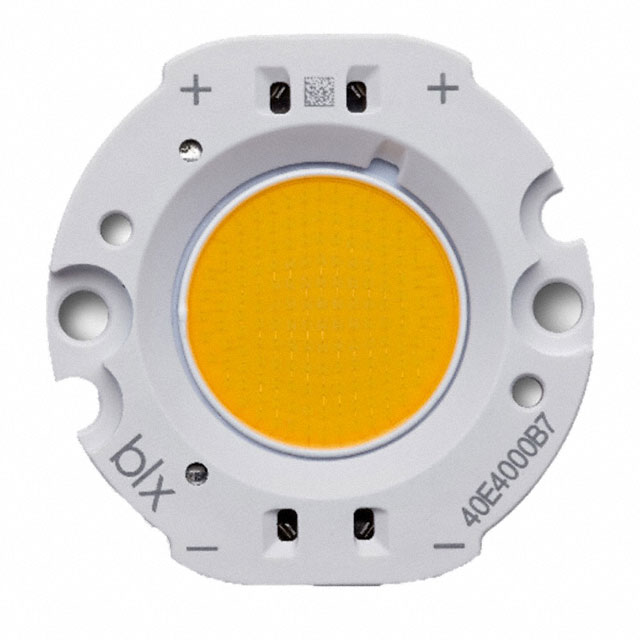

LED COB VERO 18 WM WHT RND 2000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-20B4001-C-73

Active

BRIDGELUX

LED COB VERO 18 WM WHT RND 2000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-20B4001-C-73

CCT (K)	2000 K
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	65
Current - Max [Max]	2.34 A
Features	With Connector
Height [z]	1.9 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	18.4 mm
Lumens/Watt @ Current - Test	121 lm/W
Luminous Flux @ Current/Temperature	5351 lm
Size / Dimension [diameter]	36.2 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	34.1 V

BXRC-20 Series

Part	Lens Type	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]	Luminous Flux @ Current/Temperature	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Current - Max [Max]	Height [z]	Color	Type	Configuration	Temperature - Test	Features
BRIDGELUX BXRC-20B10K1-C-73-SE	Flat	149 lm/W	65	29.2 mm	49.2 mm	17682 lm	120 °	1.71 A	69.4 V	2000 K	3.42 A	3.6 mm	Warm White	Chip On Board (COB)	Round
BRIDGELUX BXRC-20B1001-D-73-SE	Flat	130 lm/W	65	9.9 mm	30.8 mm	1155 lm	120 °	350 mA	25.3 V	2000 K	700 mA	3.6 mm	Warm White	Chip On Board (COB)	Round	85 °C
BRIDGELUX BXRC-20B4001-C-73	Flat	121 lm/W	65	18.4 mm	36.2 mm	5351 lm	120 °		34.1 V	2000 K	2.34 A	1.9 mm	Warm White	Chip On Board (COB)	Round	85 °C	With Connector
BRIDGELUX BXRC-20B10K1-D-73-SE	Flat	149 lm/W	65	29.2 mm	49.2 mm	11765 lm	120 °	2.1 A	37.6 V	2000 K	4.2 A	3.6 mm	Warm White	Chip On Board (COB)	Round
BRIDGELUX BXRC-20B10K1-D-73	Flat	149 lm/W	65	29.2 mm	49.2 mm	11793 lm	120 °	2.1 A	37.6 V	2000 K	4.2 A	1.9 mm	Warm White	Chip On Board (COB)	Round
BRIDGELUX BXRC-20B4001-D-73	Flat	121 lm/W	65	18.4 mm	36.2 mm	3981 lm	120 °	1.05 A	28.1 V	2000 K	2.1 A	1.9 mm	Warm White	Chip On Board (COB)	Round	85 °C	With Connector
BRIDGELUX BXRC-20B4001-C-73-SE	Flat	132 lm/W	65	18.4 mm	36.2 mm		120 °		34.1 V	2000 K	2.34 A	3.6 mm	Warm White	Chip On Board (COB)	Round	85 °C
BRIDGELUX BXRC-20B4001-D-73-SE	Flat	132 lm/W	65	18.4 mm	36.2 mm	3929 lm	120 °	1.05 A	28.3 V	2000 K	2.1 A	3.6 mm	Warm White	Chip On Board (COB)	Round	85 °C
BRIDGELUX BXRC-20B1001-B-73-SE	Flat	131 lm/W	65	9.9 mm	30.8 mm	1192 lm	120 °	270 mA	33.8 V	2000 K	540 mA	3.6 mm	Warm White	Chip On Board (COB)	Round	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 11.21

Description

General part information

BXRC-20 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 Vero® 18 Array White, Warm Round
