TG-A486C-150-150-0.5-1A

Obsolete

t-Global Technology

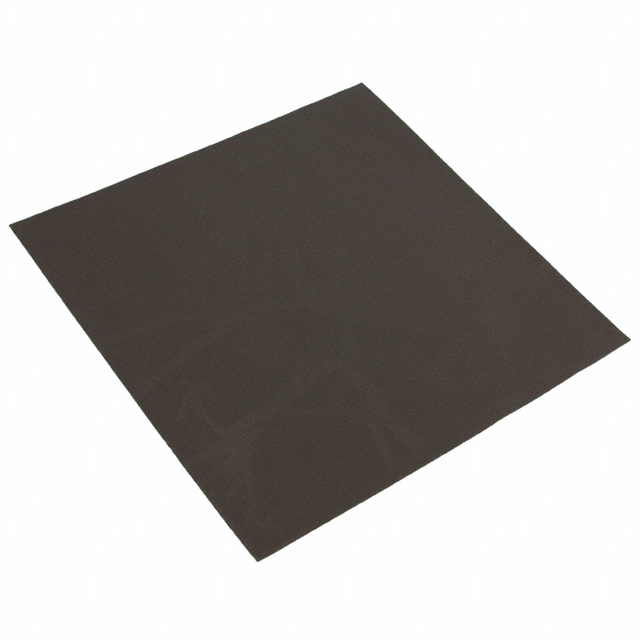

THERM PAD 150MMX150MM W/ADH GRAY

Search across all available documentation for this part.

Obsolete

t-Global Technology

THERM PAD 150MMX150MM W/ADH GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life	Thickness	Thickness	Outline [x]	Outline [y]	Color	Thermal Conductivity	Shape	Adhesive	Type	Thickness [custom]	Thickness [custom]
t-Global Technology TG-A486C-320-320-3.0-1A	12 Months	3 mm	0.118 in	320 mm	320 mm	Gray	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet
t-Global Technology TG-A486C-150-150-3.0-1A	12 Months	3 mm	0.118 in	150 mm	150 mm	Gray	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet
t-Global Technology TG-A486C-150-150-10.0-0	24 Months	10 mm	0.394 in	150 mm	150 mm	Gray	3.2 W/m-K	Square		Conductive Pad Sheet
t-Global Technology TG-A486C-150-150-0.5-2A	12 Months	0.5 mm	0.0197 in	150 mm	150 mm	Gray	3.2 W/m-K	Square	Adhesive - Both Sides	Conductive Pad Sheet
t-Global Technology TG-A486C-320-320-2.0-0	24 Months	2 mm	0.079 in	320 mm	320 mm	Gray	3.2 W/m-K	Square		Conductive Pad Sheet
t-Global Technology TG-A486C-150-150-2.0-0	24 Months	2 mm	0.079 in	150 mm	150 mm	Gray	3.2 W/m-K	Square		Conductive Pad Sheet
t-Global Technology TG-A486C-320-320-10.0-1A	12 Months	10 mm	0.394 in	320 mm	320 mm	Gray	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet
t-Global Technology TG-A486C-320-320-10.0-0	24 Months	10 mm	0.394 in	320 mm	320 mm	Gray	3.2 W/m-K	Square		Conductive Pad Sheet
t-Global Technology TG-A486C-150-150-0.5-1A	12 Months	0.5 mm	0.0197 in	150 mm	150 mm	Gray	3.2 W/m-K	Square	Adhesive - One Side	Conductive Pad Sheet
t-Global Technology TG-A486C-150-150-0.3-0	24 Months			150 mm	150 mm	Gray	3.2 W/m-K	Square		Conductive Pad Sheet	0.305 mm	0.012 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
