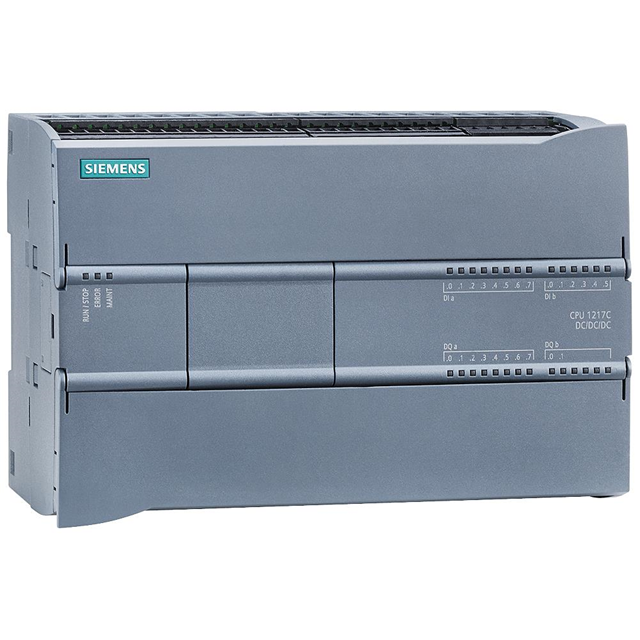

6ES72171AG400XB0

Active

Siemens

CPU 1217C, DC/DC/DC, 14DI/10DQ/2

Search across all available documentation for this part.

Active

Siemens

CPU 1217C, DC/DC/DC, 14DI/10DQ/2

Technical Specifications

Parameters and characteristics for this part

Specification	6ES72171AG400XB0

Approval Agency	UL, KC, cULus, RCM, FM, CE
Display Type	No Display
Expandable	False
Memory Size	150 KB
Number of Inputs and Type	14
Number of Inputs and Type	Digital
Number of Outputs and Type [custom]	Pulse (4)
Number of Outputs and Type [custom]	10
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	20.4 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Number of Inputs and Type	Number of Inputs and Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Expandable	Display Type	Approval Agency
Siemens 6ES72171AG400XB0	20.4 V	28.8 VDC	150 KB	-20 C	60 °C	14	Digital	Pulse (4)	10		No Display	CE cULus FM KC RCM UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1280.36

General part information

Programmable Logic Controller (PLC) Panel Mount 20.4 ~ 28.8VDC
