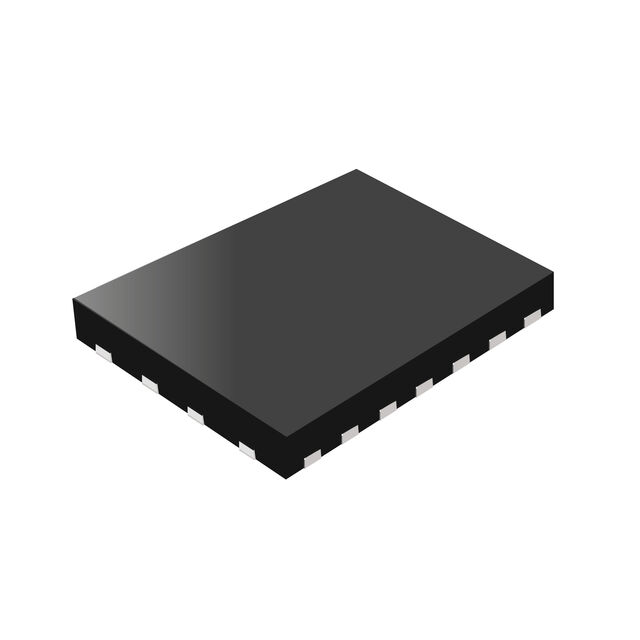

PE24108A-X

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, BUCK, 10A, 3V TO 3.6 V IN, 400 MV TO 1 V OUT, QFN-14

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PE24108A-X

Active

Murata Power Solutions Inc.

DC-DC CONVERTER, BUCK, 10A, 3V TO 3.6 V IN, 400 MV TO 1 V OUT, QFN-14

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PE24108A-X

Current - Output	10 A
Function	Step-Down
Number of Outputs	1
Output Configuration	Positive
Output Type	Programmable
Synchronous Rectifier	False
Topology	Buck
Voltage - Input (Max) [Max]	3.6 V
Voltage - Input (Min) [Min]	3 V
Voltage - Output (Max)	1 V
Voltage - Output (Min/Fixed)	0.4 V

PE24108 Series

Part	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Current - Output	Output Configuration	Function	Output Type	Voltage - Output (Max)	Topology	Number of Outputs	Synchronous Rectifier
Murata Power Solutions Inc. PE24108A-X	3.6 V	0.4 V	3 V	10 A	Positive	Step-Down	Programmable	1 V	Buck	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.12
		10	$ 6.91
		25	$ 6.70
		50	$ 6.50
		100	$ 6.31
		200	$ 6.12
	Digi-Reel®	1	$ 7.12
		10	$ 6.91
		25	$ 6.70
		50	$ 6.50
		100	$ 6.31
		200	$ 6.12
	Tape & Reel (TR)	500	$ 5.94
Newark	Each (Supplied on Cut Tape)	500	$ 8.70
		1000	$ 8.17

Description

General part information

PE24108 Series

PE24108A-X is a 3.3Vin, 10A, two-stage buck regulator for low-output voltage applications. It is a compact, low-profile, and ultra-high-efficiency step-down DC-DC converter solution capable of delivering 10A per stage output current from an input voltage range from 3.0V to 3.6V. The output voltage is selected with external feedback resistors and can be adjusted between 0.4 and 1.0V. Based on Murata’s advanced two-stage architecture, this device consists of a two-phase interleaved charge pump followed by an interleaved buck regulator stage. This power system greatly reduces the dependency on inductance for high-efficiency solutions in small-footprint and height-constrained applications. It is used in applications such as low-profile point-of-load (POL) regulators, optical modules, core supplies, ASICs, and FPGA.
