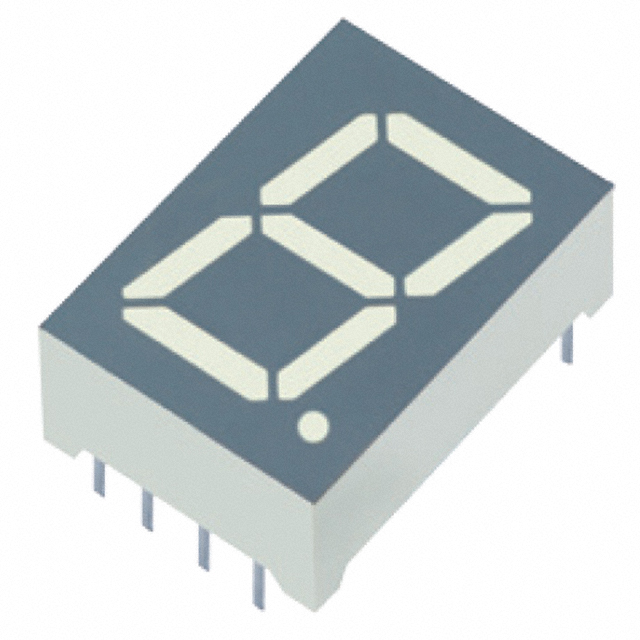

XDUR13C

Active

SunLED

DISPLAY 7SEG 0.52" SGL RED 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUR13C

Active

SunLED

DISPLAY 7SEG 0.52" SGL RED 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUR13C

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	13.21 mm
Digit/Alpha Size	0.52 in
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.689 in
Size / Dimension [y]	12.4 mm
Size / Dimension [y]	0.488 in
Size / Dimension [z]	7 mm
Size / Dimension [z]	0.276 in
Voltage - Forward (Vf) (Typ)	1.9 V
Wavelength - Peak	627 nm

XDUR13 Series

Part	Voltage - Forward (Vf) (Typ)	Color	Digit/Alpha Size	Digit/Alpha Size	Number of Characters [custom]	Current - Test	Package / Case	Package / Case	Package / Case	Millicandela Rating	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Wavelength - Peak	Common Pin	Display Type
SunLED XDUR13C	1.9 V	Red	13.21 mm	0.52 in	1	10 mA	0.6 in	15.24 mm	10-DIP	2 mcd	75 mw	12.4 mm	7 mm	0.276 in	0.488 in	17.5 mm	0.689 in	627 nm	Common Cathode	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.64

Description

General part information

XDUR13 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.9V 10mA 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) 10-DIP (0.600", 15.24mm)
