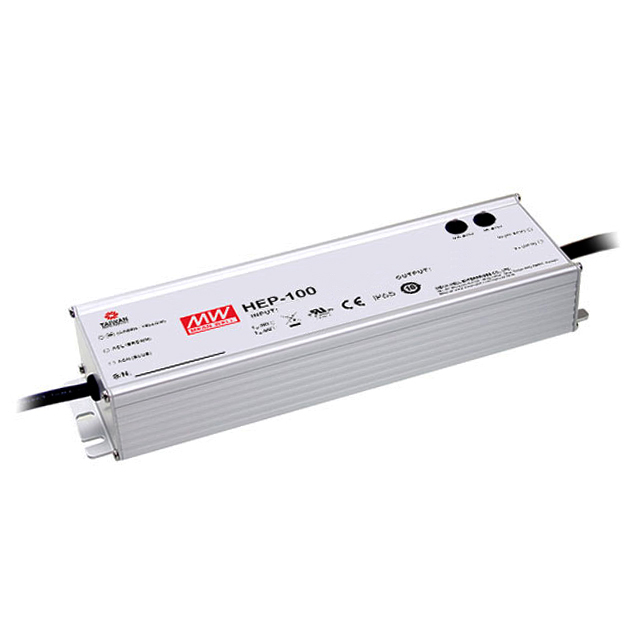

HEP-100-12A

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	HEP-100-12A

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	8.34 A
Efficiency	92 %
Features	PFC, IP65, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-55 °C
Power (Watts)	100 W
Size / Dimension [x]	7.72 "
Size / Dimension [x]	196 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.8 mm
Type	Enclosed
Voltage - Input [Max]	305 VAC, 431 VDC
Voltage - Input [Min]	90 VAC, 127 VDC
Voltage - Isolation	3750 V
Voltage - Output 1	12 V

Part	Number of Outputs	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output 1	Efficiency	Mounting Type	Type	Voltage - Output 1	Applications
MEAN WELL USA Inc. HEP-100-12A	1	3750 V	90 VAC 127 VDC	305 VAC 431 VDC	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	100 W	CB CE cURus	-55 °C	70 °C	Adjustable Output IP65 PFC Universal Input	8.34 A	92 %	Chassis Mount	Enclosed	12 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 305 VAC, 127 ~ 431 VDC Input
