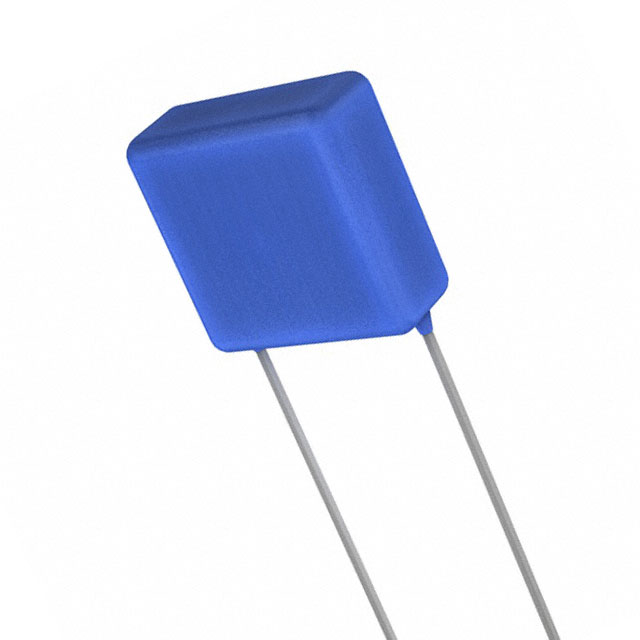

05HV15B224KN

Active

KEMET

CAP CER 0.22UF 500V X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.22UF 500V X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	05HV15B224KN

Applications	Downhole
Capacitance	0.22 µF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.6 in
Height - Seated (Max) [Max] [z]	15.24 mm
Lead Spacing	15.24 mm
Lead Spacing	0.6 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.72 in
Size / Dimension [x]	18.29 mm
Size / Dimension [y]	0.354 in
Size / Dimension [y]	9 mm
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	500 V

Part	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Mounting Type	Voltage - Rated	Temperature Coefficient	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style
KEMET 05HV15B224KN	High Temperature High Voltage	0.354 in	9 mm	0.72 in	18.29 mm	Downhole	Through Hole	500 V	X7R	0.22 µF	-55 °C	200 °C	15.24 mm	0.6 in	Radial	10 %	0.6 in	15.24 mm	Straight
