Q-3603X0008036I
ActiveAmphenol Custom Cable

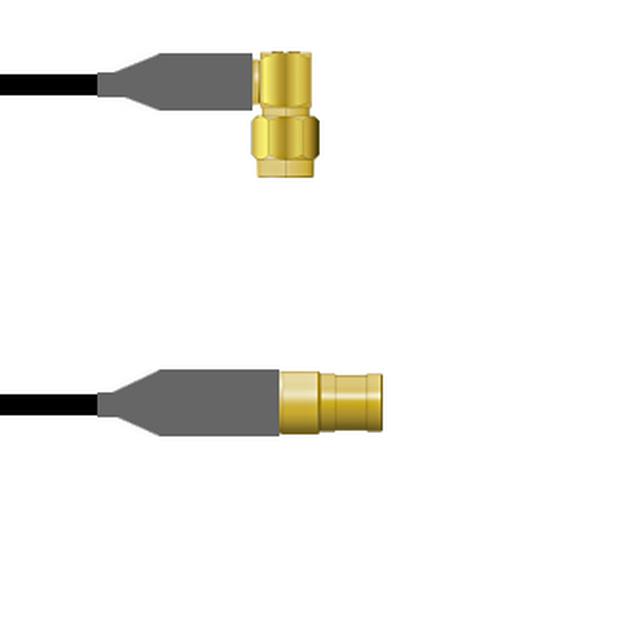

COAX CBL SMA TO SMB 36"
Deep-Dive with AI
Search across all available documentation for this part.
Q-3603X0008036I
ActiveAmphenol Custom Cable
COAX CBL SMA TO SMB 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3603X0008036I |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 92.36 | |
| 25 | $ 90.54 | |||
| 50 | $ 88.73 | |||
| 100 | $ 86.92 | |||
| 250 | $ 85.11 | |||
Description
General part information
Q-3603X0 Series
Cable Assembly Coaxial SMA to SMB RG-58 36.00" (914.40mm)
Documents
Technical documentation and resources
No documents available
