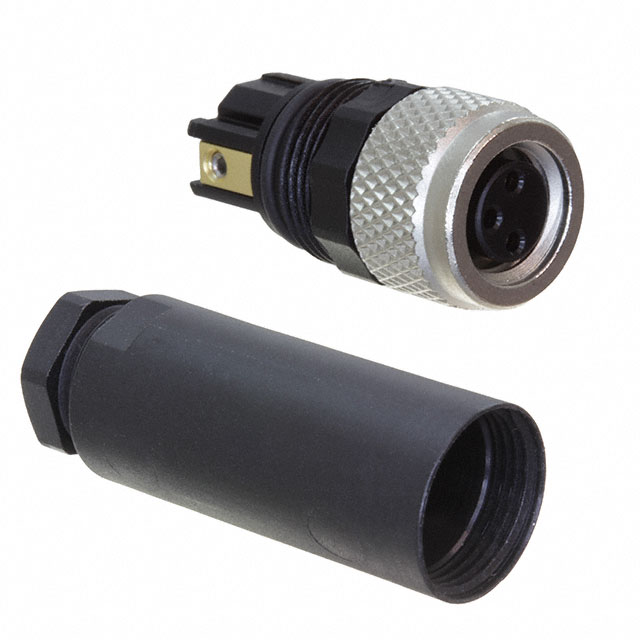

V3-GM

Active

PEPPERL+FUCHS

CONN PLUG FMALE 3POS GOLD SCREW

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG FMALE 3POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	V3-GM

Applications	Industrial Automation
Backshell Material, Plating	Polyamide (PA), Polybutylene Terephthalate (PBT), Nylon
Cable Opening [Max] [diameter]	5 mm
Cable Opening [Max] [diameter]	0.197 in
Cable Opening [Min] [diameter]	3.5 mm
Cable Opening [Min] [diameter]	0.138 in
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Size - Insert	M8-3
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 VAC

Part	Features	Applications	Backshell Material, Plating	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Color	Shell Size - Insert	Shielding	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Termination	Contact Material	Mounting Type
PEPPERL+FUCHS V3-GM	Backshell Coupling Nut	Industrial Automation	Nylon Polyamide (PA) Polybutylene Terephthalate (PBT)	4 A	Gold	IP67 - Dust Tight Waterproof	Black Silver	M8-3	Unshielded	Female Sockets Plug	60 VAC	-25 °C	85 °C	UL94 HB	5 mm	3.5 mm	0.197 in	0.138 in	Screw	Copper Zinc	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Screw
