SE10GORTM
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 5651 RPM 4V
Deep-Dive with AI
Search across all available documentation for this part.
SE10GORTM
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 5651 RPM 4V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE10GORTM |
|---|---|
| Diameter - Shaft [diameter] | 0.039 in |
| Diameter - Shaft [diameter] | 1 mm |
| Function | Standard |
| Length - Shaft and Bearing | 0.256 " |
| Length - Shaft and Bearing | 6.5 mm |
| Motor Type | Brushed |
| RPM | 5651 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Size / Dimension [y] | 10 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.056 oz-in |
| Torque - Rated (oz-in / mNm) | 0.4 mNm |
| Type | DC Motor |
| Voltage - Rated | 4 V |
| Weight | 5.9 g |
| Weight | 0.013 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SE10GO Series

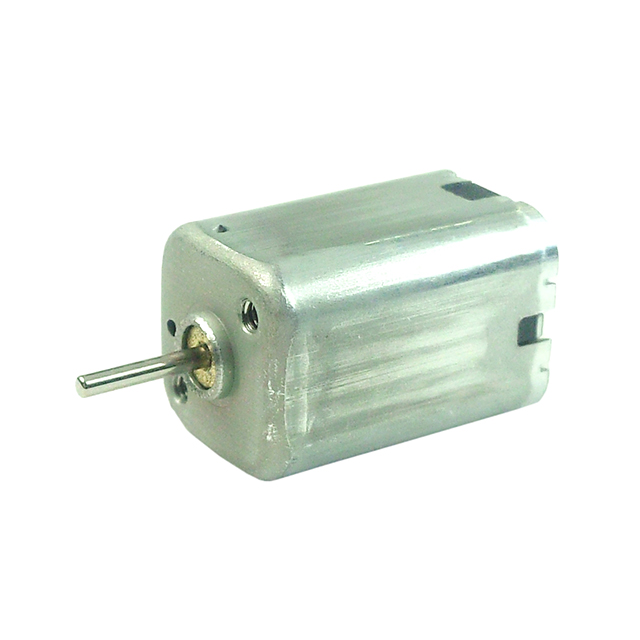

Brushed DC Motor Standard 5651 RPM 4VDC
