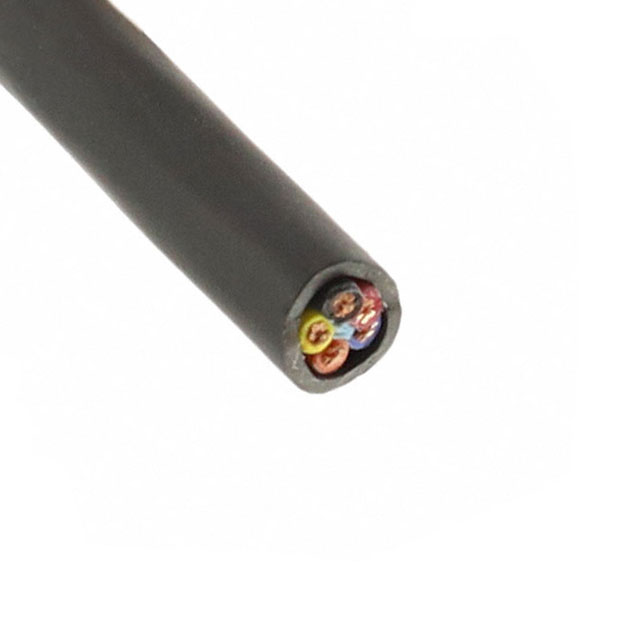

M3830 BK005

Active

ALPHA WIRE

AE TRAY CABLE /100 FT /EACH

Search across all available documentation for this part.

Active

ALPHA WIRE

AE TRAY CABLE /100 FT /EACH

Technical Specifications

Parameters and characteristics for this part

Specification	M3830 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	0.0192 in
Jacket (Insulation) Diameter [diameter]	0.368 in
Jacket (Insulation) Diameter [diameter]	9.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	5
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Voltage	600 V
Wire Gauge	16 AWG

Part	Voltage	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket (Insulation) Material	Cable Type	Length	Length
ALPHA WIRE M3830 BK005	600 V	5	90 °C	-25 °C	1.194 mm	0.047 in	0.368 in	9.35 mm	16 AWG	Poly-Vinyl Chloride (PVC)	Black	Copper Bare	7	0.0192 in	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Multi-Conductor
ALPHA WIRE M3830 BK199	600 V	5	90 °C	-25 °C	1.194 mm	0.047 in	0.368 in	9.35 mm	16 AWG	Poly-Vinyl Chloride (PVC)	Black	Copper Bare	7	0.0192 in			Poly-Vinyl Chloride (PVC)	Multi-Conductor	914.4 m	3000 ft
ALPHA WIRE M3830 BK002	600 V	5	90 °C	-25 °C	1.194 mm	0.047 in	0.368 in	9.35 mm	16 AWG	Poly-Vinyl Chloride (PVC)	Black	Copper Bare	7	0.0192 in	152.4 m	500 '	Poly-Vinyl Chloride (PVC)	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Conductor Multi-Conductor Cable Black 16 AWG 100.0' (30.5m)
