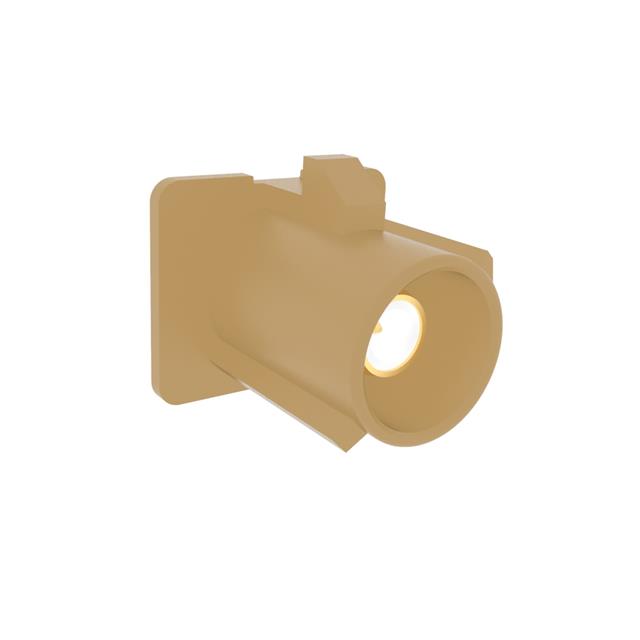

FA1-NISP-PCB-2

Active

Amphenol RF

CONN SMB 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE M GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE M GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NISP-PCB-2

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code I
Frequency - Max [Max]	4 GHz
Housing Color	Beige
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Impedance	Body Finish	Features	Mounting Feature	Connector Type	Cable Group	Center Contact Plating	Shield Termination	Contact Termination	Insertion Loss	Body Material	Frequency - Max [Max]	Number of Ports	Housing Color	Connector Style	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Includes	Fastening Type	Mounting Type
Amphenol RF FA1-NISP-C01-0	50 Ohms	Nickel	Code I	Flange	Male Pin Plug	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	Crimp	Crimp	0.3 dB	Brass	4 GHz	1	Beige	Fakra SMB	Polytetrafluoroethylene (PTFE)	100 °C	-40 °C	Brass	1 Connector 1 Contact 1 Ferrule	Locking Ramp
Amphenol RF FA1-NISP-PCB-2	50 Ohms	Gold	Code I		Male Pin Plug		Gold	Solder	Solder		Brass	4 GHz	1	Beige	Fakra SMB	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	Brass		Locking Ramp	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 4.07

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
