1841A 0101000

Obsolete

Belden Inc.

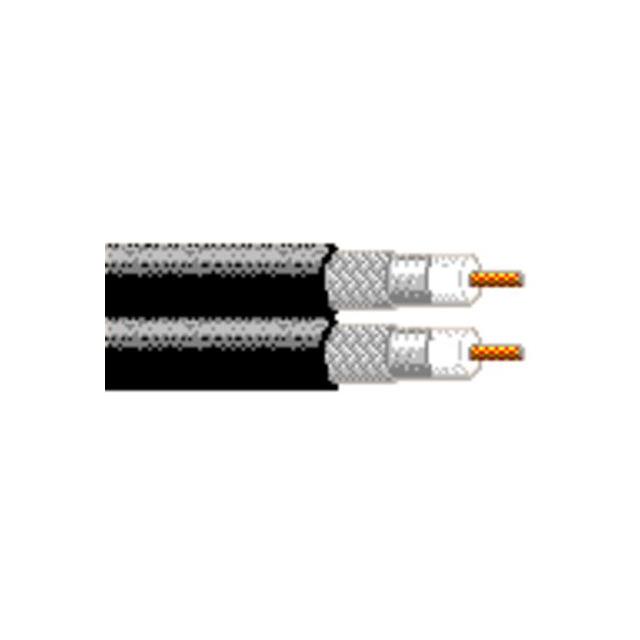

CBL COAX RG-6, DUAL 18AWG 1000'

Search across all available documentation for this part.

Obsolete

Belden Inc.

CBL COAX RG-6, DUAL 18AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1841A 0101000

Cable Group	Dual, RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid (2)
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge [custom]	2
Wire Gauge [custom]	18 AWG

Part	Wire Gauge [custom]	Wire Gauge [custom]	Length	Length	Jacket (Insulation) Material	Shield Type	Conductor Strand	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	VoP, Velocity of Propagation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Jacket Color	Shield Material	Conductor Material	Impedance	Cable Type
Belden Inc. 1841A 0101000	2	18 AWG	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	Braid Foil	Solid (2)	Dual RG-6	0.18 in	4.57 mm	Foam Polyethylene (FPE)	83	-40 °C	80 C	100% 60%	Black	Aluminum	Copper Coated Steel	75 Ohms	Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 18 AWG (2) RG-6, Dual 1000.0' (304.80m) 75 Ohms
