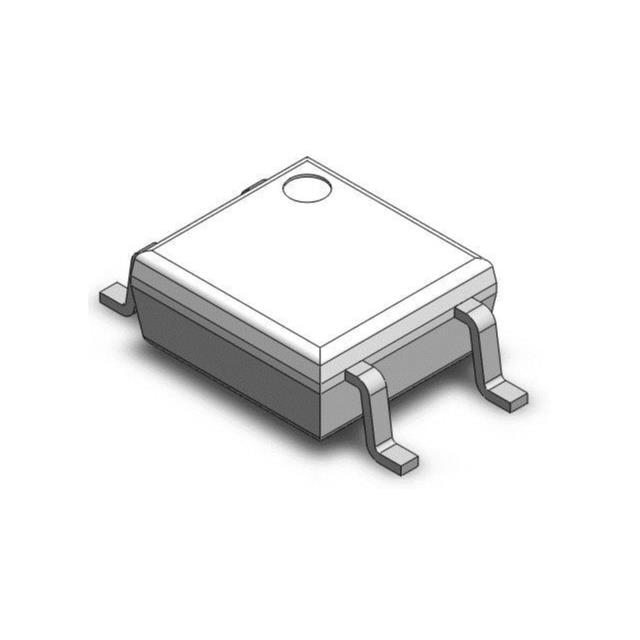

APC-3052

Active

American Bright Optoelectronics Corporation

SOP4, DC INPUT, RANDOM-PHASE PHO

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

SOP4, DC INPUT, RANDOM-PHASE PHO

Technical Specifications

Parameters and characteristics for this part

Specification	APC-3052

Approval Agency	CSA, VDE, CQC, UL, cUL
Current - DC Forward (If) (Max) [Max]	60 mA
Current - Hold (Ih)	257 µA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	4-SMD, Gull Wing
Static dV/dt (Min) [Min]	1 kV/µs
Supplier Device Package	4-SOP
Voltage - Forward (Vf) (Typ)	1.24 V
Voltage - Isolation	3750 Vrms
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Output Type	Current - LED Trigger (Ift) (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Current - Hold (Ih)	Number of Channels	Operating Temperature [Max]	Operating Temperature [Min]	Zero Crossing Circuit	Voltage - Off State	Static dV/dt (Min) [Min]	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Approval Agency
American Bright Optoelectronics Corporation APC-3052	Triac	10 mA	4-SOP	1.24 V	Surface Mount	4-SMD Gull Wing	257 µA	1	100 °C	-40 °C		600 V	1 kV/µs	3750 Vrms	60 mA	CQC CSA cUL UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 3750Vrms 1 Channel 4-SOP
