1411FBBU

Active

Hammond Manufacturing

BOX ALUM 2.77"L X 2.25"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1411FBBU

Active

Hammond Manufacturing

BOX ALUM 2.77"L X 2.25"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1411FBBU

Area (L x W)	6.23 in²
Area (L x W)	40.2 cm²
Color	Unpainted
Container Type	Box
Design	U Shaped Pieces
Height [z]	41.66 mm
Height [z]	1.64 in
Material	Metal, Aluminum
Size / Dimension [x]	70.36 mm
Size / Dimension [x]	2.77 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	0.04 in
Thickness	1.02 mm
Weight	63.5 g
Weight	0.14 lb

1411 Series

Part	Design	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Weight	Weight	Thickness	Thickness	Material	Size / Dimension [y]	Area (L x W)
Hammond Manufacturing 1411GU	U Shaped Pieces	41.66 mm	1.64 in	57.9 cm²	8.98 in²	Box	101.35 mm	3.99 in	57.15 mm	2.25 in	Unpainted	0.18 lb	81.65 g	0.04 in	1.02 mm	Aluminum Metal
Hammond Manufacturing 1411K	U Shaped Pieces	57.4 mm	2.26 in	73 cm²	11.3 in²	Box	127 mm	5 in		2.25 in	Gray	0.24 lb	108.86 g	0.04 in	1.02 mm	Aluminum Metal	57.15 mm
Hammond Manufacturing 1411F	U Shaped Pieces	76.71 mm	3.02 in	59.4 cm˛	9.2 in˛	Box	101.6 mm	4 in	58.42 mm	2.3 "	Gray	0.24 lb	108.86 g	0.04 in	1.02 mm	Aluminum Metal
Hammond Manufacturing 1411FBLU	U Shaped Pieces	76.45 mm	3.01 "	129 cm²	20 in²	Box	127.25 mm	5.01 in		4 "	Unpainted	0.4 lb	181.44 g	0.04 in	1.02 mm	Aluminum Metal	101.6 mm
Hammond Manufacturing 1411FU	U Shaped Pieces	76.71 mm	3.02 in	59.4 cm˛	9.2 in˛	Box	101.6 mm	4 in	58.42 mm	2.3 "	Unpainted	0.24 lb	108.86 g	0.04 in	1.02 mm	Aluminum Metal
Hammond Manufacturing 1411FBBU	U Shaped Pieces	41.66 mm	1.64 in	40.2 cm²	6.23 in²	Box	70.36 mm	2.77 in		2.25 in	Unpainted	0.14 lb	63.5 g	0.04 in	1.02 mm	Aluminum Metal	57.15 mm
Hammond Manufacturing 1411FBNBK	U Shaped Pieces	57.4 mm	2.26 in	97 cm²		Box	127 mm	5 in		3.01 in	Black	0.28 lb	127.01 g	0.04 in	1.02 mm	Aluminum Metal	76.45 mm	15 in²
Hammond Manufacturing 1411TU	U Shaped Pieces	41.66 mm	1.64 in	145 cm˛	22.4 in˛	Box	253.75 mm	9.99 in		2.25 in	Unpainted	0.3 lb	136.08 g	0.04 in	1.02 mm	Aluminum Metal	57.15 mm
Hammond Manufacturing 1411P	U Shaped Pieces	101.85 mm	4.01 in	193 cm²	29.9 in²	Box	152.15 mm	5.99 in		4.99 in	Gray	0.62 lb	281.23 g	0.04 in	1.02 mm	Aluminum Metal	126.75 mm
Hammond Manufacturing 1411X	U Shaped Pieces	101.85 mm	4.01 in	541 cm²	83.8 in²	Box	304.55 mm	11.99 in		6.99 in	Gray	1.3 lbs	589.7 g	0.04 in	1.02 mm	Aluminum Metal	177.55 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.74
		5	$ 7.47
		10	$ 6.98
		25	$ 6.39
		50	$ 5.97
		100	$ 5.58
		250	$ 5.10
		500	$ 5.10

Description

General part information

1411 Series

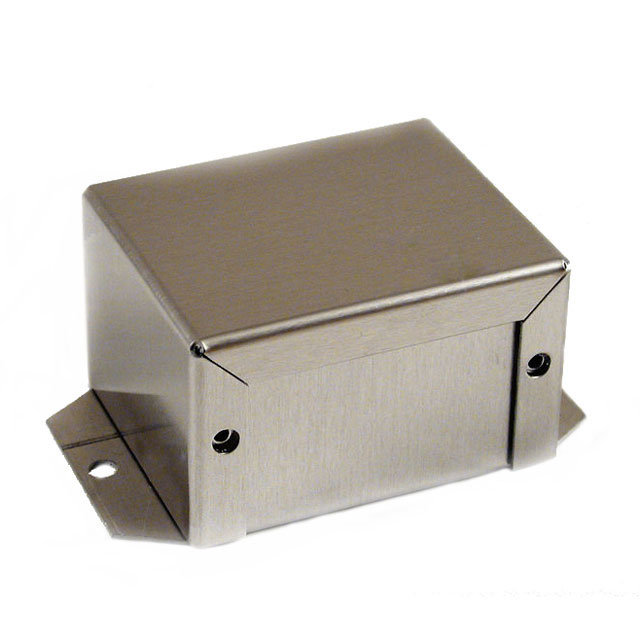

Box Metal, Aluminum Unpainted U Shaped Pieces 2.770" L x 2.250" W (70.36mm x 57.15mm) X 1.640" (41.66mm)

Documents

Technical documentation and resources
